Industrial Slurry Hose Solutions for Abrasive Fluid Transfer
The Slurry Discharge Hose is engineered for demanding slurry transfer applications involving seawater, sand, and abrasive materials. Designed for flexibility and high wear resistance, this hose enables reliable discharge operations in dredging, mining, and industrial material-handling environments. Manufactured with sturdy rubber compounds, reinforced construction, and Standard ANSI 150 PSI fixed flanges, it delivers consistent performance under controlled pressure conditions while meeting established industry specifications.
Home
Built for Slurry Discharge Applications
The Slurry Discharge Hose is built to meet the operational demands of abrasive material discharge while maintaining structural integrity and consistent performance. All features below strictly align with the technical data provided by Anaconda Pipe and Hose.
Abrasion-Resistant Inner Tube
Manufactured from NR, BR, and SBR rubber compounds, the inner tube is designed to withstand continuous contact with sand, seawater, and abrasive slurry, thereby extending service life under harsh operating conditions.
High-Strength Reinforced Construction
Reinforced with high-tensile-strength fabric layers and helical steel wire, the hose maintains dimensional stability and pressure integrity during discharge operations.
ANSI 150 PSI Fixed Flange Configuration
Supplied with Standard ANSI 150 PSI fixed flanges, ensuring compatibility with common industrial piping systems and secure bolted connections.
Controlled Working Pressure Ratings
Available in 110 PSI and 150 PSI working pressure options, depending on hose diameter, supporting safe and reliable slurry discharge applications.
No Negative Pressure Design
Engineered for discharge use, the hose is designed for non-vacuum applications and ensures optimal performance within its intended operating range.
Wide Diameter Range
Offered in 4”, 6”, 8”, 10”, and 12” inner diameters, allowing suitability across varying flow rates and project requirements.
Standard 33 ft (10 m) Length
Manufactured in a consistent 33-foot (10-meter) length to simplify installation planning and system layout.
Operational Temperature Range
Rated for continuous operation between 20 °C (68 °F) and 80° C (176°F), supporting use in diverse environmental and industrial conditions.
Defined Bend Radius Specifications
Designed with controlled bend radius ranges to maintain hose integrity while allowing necessary flexibility during installation and operation.
Technical Specifications
The Slurry Discharge Hose is designed for demanding discharge applications involving abrasive materials, including sand, slurry, and seawater. Its construction focuses on wear resistance, pressure stability, and secure flange connections for industrial and dredging environments.
Tube
NR, BR, and SBR rubber compounds selected for abrasion resistance and durability in slurry discharge conditions.
Reinforcement
High tensile strength fabric layers combined with helix steel wire to maintain hose shape and pressure control during operation.
Cover
NR and CR rubber cover protects against external wear and environmental exposure.
Design Type
Discharge-only hose, not intended for negative pressure or vacuum applications.
Safety Factor
Engineered with a 3:1 safety factor for controlled industrial use.
Operating Temperature
Suitable for continuous operation from 20 °C (68 °F) to 80°C (176°F)
Flange Configuration
Supplied with standard ANSI 150 PSI fixed flanges for secure and consistent connections.
Product Dimensions and Ratings
Inner Diameter | Outer Diameter | Inner Layer Thickness | Working Pressure | Standard Length | Approx. Weight | Bend Radius Range | Flange Standard |
|---|---|---|---|---|---|---|---|
4” (102 mm) | 5” (128 mm) | 5/16” (8 mm) | 110 PSI | 33 ft (10 m) | 199 lbs (90.3 kg) | 24.5” – 40” (620 – 1020 mm) | ANSI 150 PSI |
6” (152 mm) | 7” (182 mm) | 5/16” (8 mm) | 150 PSI | 33 ft (10 m) | 331 lbs (150.1 kg) | 36” – 60” (920 – 1520 mm) | ANSI 150 PSI |
8” (203 mm) | 9.3” (237 mm) | 5/16” (8 mm) | 150 PSI | 33 ft (10 m) | 485 lbs (220 kg) | 48” – 80” (1220 – 2030 mm) | ANSI 150 PSI |
10” (254 mm) | 11.3” (288 mm) | 5/16” (8 mm) | 110 PSI | 33 ft (10 m) | 618 lbs (280.3 kg) | 60” – 100” (1530 – 2540 mm) | ANSI 150 PSI |
12” (300 mm) | 13.3” (338 mm) | 5/16” (8 mm) | 150 PSI | 33 ft (10 m) | 850 lbs (385.5 kg) | 72” – 120” (1820 – 3040 mm) | ANSI 150 PSI |
Accessories
The Slurry Discharge Hose is supplied with standard ANSI 150 PSI flange connections, allowing straightforward integration into existing slurry and dredging systems. Installation accessories should be selected based on hose diameter, pressure rating, and site-specific requirements.

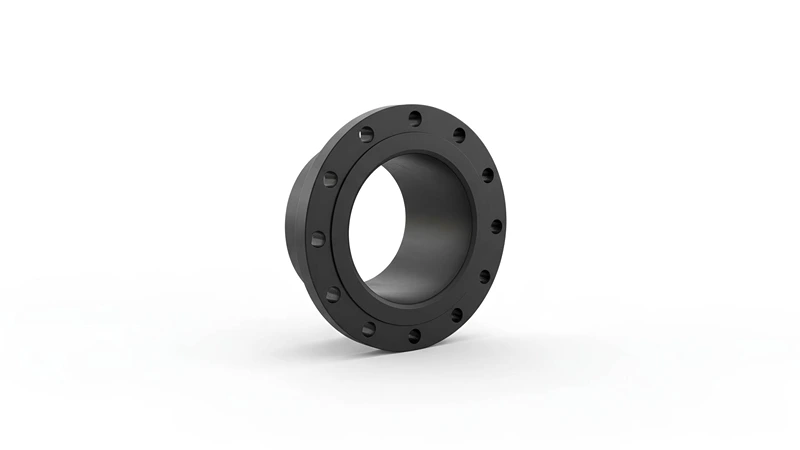

Commonly used accessories include
- ANSI 150 PSI flange hardware, such as bolts, nuts, and gaskets, for secure flanged connections
- Gaskets to ensure proper sealing between flange faces
- Handling and lifting aidsare recommended for positioning larger diameter hoses during installation
Accessory selection should follow standard ANSI practices and project installation guidelines.
Related Products
The Slurry Discharge Hose is typically used as part of a complete material transfer system. The following related products, available on the Anaconda Pipe and Hose website, are commonly paired with slurry discharge applications:

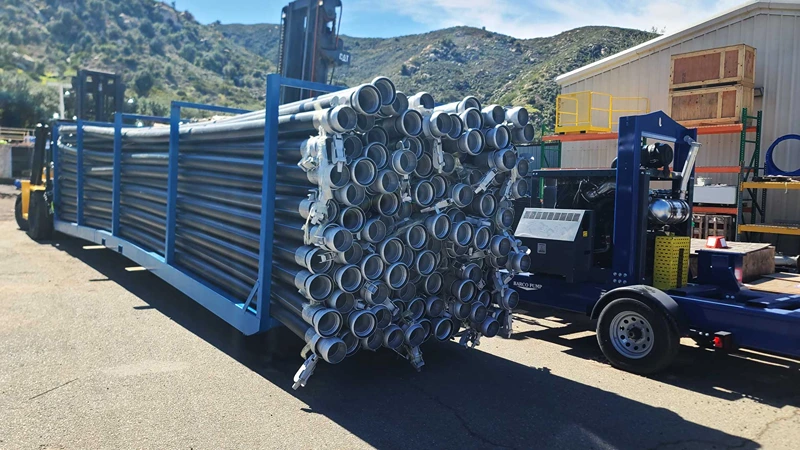

HDPE Pipe Systems
Used for long-distance slurry and water transfer where rigid piping is required, often connected to slurry hoses at pump or discharge points.

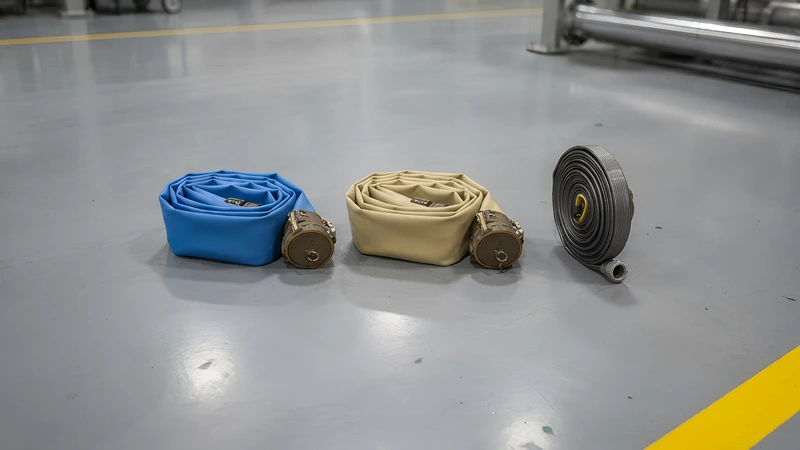

Lay Flat Hose
Flexible hose solutions are used for water and fluid discharge in temporary or mobile industrial operations.

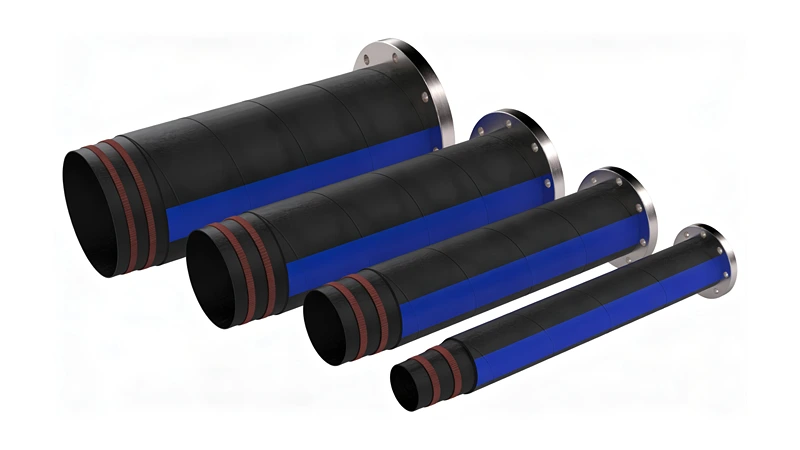

Additional Slurry Hose Sizes
The industrial slurry hose range is available in multiple diameters to support different flow rates and project requirements.
These related products allow system designers and operators to configure slurry handling setups that align with operational demands and site conditions.
Speak With Technical Team
Get in touch with Anaconda Pipe & Hose for industry-ready pipe and hose solutions.

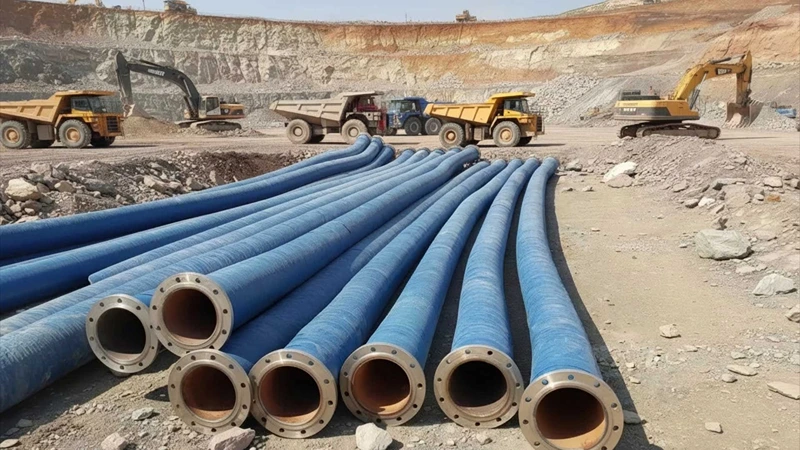

Pipe and Hose Rentals
The Slurry Discharge Hose is available through Anaconda Pipe and Hose rental programs for short-term and project-based slurry discharge needs. Rentals support dredging, mining, construction, and temporary slurry transfer applications where flexibility is required.
Hoses are supplied in standard lengths with ANSI 150 PSI flange connections, allowing quick integration into existing systems without long-term equipment commitment.
Industries Relying on Slurry Discharge Systems
The Slurry Discharge Hose is used across industries where abrasive slurry, sand, and water must be transferred reliably under controlled pressure conditions. Its construction and ANSI flange configuration make it suitable for applications requiring durability, flexibility, and consistent discharge performance.
Dredging and Marine Operations
Used for the discharge of sand, sediment, and seawater during dredging, reclamation, and channel maintenance projects.
Mining and Mineral Processing
Applied in slurry discharge lines handling tailings, ore slurry, and abrasive material transport within mining sites and processing facilities.
Industrial Material Handling
Applied in controlled industrial environments for temporary or mobile fuel transfer, including truck loading and unloading, and auxiliary fuel supply systems.
Ports, Harbors, and Coastal Projects
Used in marine infrastructure projects involving sediment removal, shoreline work, and port maintenance activities.
Construction and Infrastructure
Suitable for slurry and water discharge in excavation, dewatering, and large-scale civil works where abrasive materials are present.
This range of applications makes the Slurry Discharge Hose a practical solution for industries that require reliable slurry discharge under demanding operating conditions.
Case study

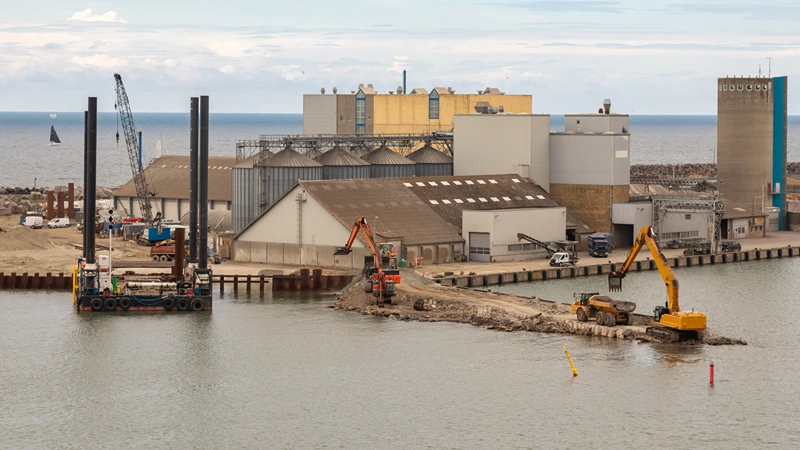

Temporary slurry discharge for dredging operations
Challenge
The project required a discharge solution capable of handling abrasive slurry consisting of sand and seawater. The setup needed to integrate with existing piping, maintain stable performance under controlled pressure, and allow flexibility during installation and repositioning.
Solution
A Slurry Discharge Hose with abrasion-resistant rubber construction and ANSI 150 PSI fixed flanges was installed as part of the discharge line. The standard hose length and defined bend radius supported efficient routing while maintaining secure flange connections.

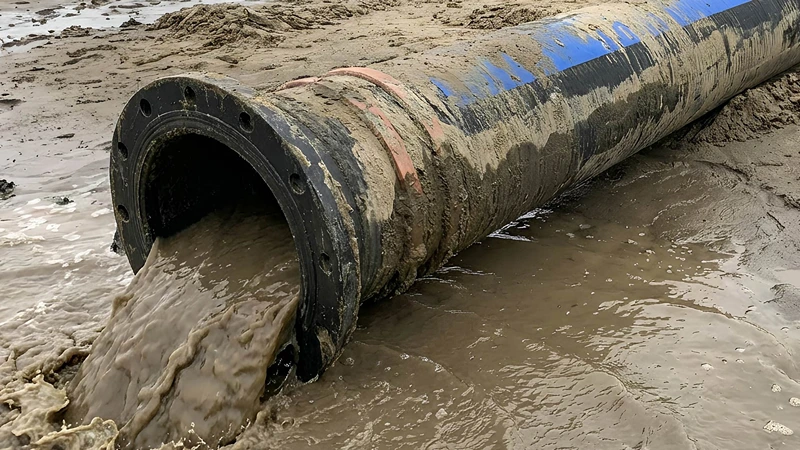

Result
The hose operated reliably throughout the project, providing consistent slurry discharge without interruption. Its construction and flange configuration allowed easy installation and removal, making it suitable for temporary dredging and project-based slurry transfer applications.
Frequently Asked Questions
What is the Slurry Discharge Hose used for?
The Slurry Discharge Hose is designed for the discharge of abrasive materials such as sand, slurry, and seawater. It is commonly used in dredging, mining, construction, and industrial material handling applications where controlled slurry transfer is required.
Can this hose be used for suction or vacuum service?
No. The Slurry Discharge Hose is intended strictly for discharge applications. It is not designed to operate under negative pressure or vacuum conditions and should only be used within its specified discharge parameters.
What working pressure ratings are available?
Depending on the hose diameter, the Slurry Discharge Hose is available with 110 PSI or 150 PSI working pressure ratings. All configurations align with ANSI 150 PSI flange standards.
What flange connection does the hose use?
The hose is supplied with ANSI 150 PSI fixed flanges, allowing secure bolted connections and compatibility with standard industrial and dredging piping systems.
What hose sizes are offered?
The Slurry Discharge Hose is available in 4”, 6”, 8”, 10”, and 12” inner diameters, providing flexibility for different flow rates and project requirements.
What is the standard hose length?
Each Slurry Discharge Hose is manufactured in a standard length of 33 ft (10 m), simplifying system design and installation planning.
What materials are used in the hose construction?
The hose features a tube made from NR, BR, and SBR rubber compounds for abrasion resistance. It is reinforced with high-tensile-strength fabric and helical steel wire and protected by an NR and CR rubber outer cover.
What temperature range can the hose operate in?
The Slurry Discharge Hose is suitable for continuous operation at temperatures from 20 C (68 F) to 80 C (176 F) and for typical industrial and dredging environments.
Is the hose suitable for temporary or rental applications?
Yes. The Slurry Discharge Hose is available through Anaconda Pipe and Hose rental programs, making it suitable for temporary projects, maintenance work, and short-term slurry discharge operations.
How should the correct hose size be selected?
Hose selection should be based on operating pressure, required flow rate, bend radius limitations, and compatibility with existing ANSI flange connections. Project conditions and installation layout should also be considered.
