10-inch Industrial Slurry Discharge Hose – High Abrasion Resistant
The Anaconda 10-inch Slurry Hose assemblies are designed for reliable transport of abrasive, corrosive, and high-solids slurry in demanding industrial applications. Featuring a gum-lined inner tube rated at 150 PSI, these heavy-duty discharge hoses deliver strong abrasion resistance and consistent flow performance. Each hose includes ANSI-standard flange connections with a rotatable flange for easier alignment and installation. Supplied in 33-foot (10-meter) sections and reinforced with steel-braided synthetic cord and an integrated steel wire helix, the hose provides durability, controlled flexibility, and long service life. It is suitable for dredging, mining, oil and gas, construction, agriculture, wastewater, and chemical processing operations, and operates effectively from 68°F to 176°F (20°C to 80°C).
Home
Slurry Hose
10 Inch Slurry Discharge HoseKey Features of 10-inch Slurry Hose
Large 10-Inch Bore for High-Volume Slurry Transfer
The full-bore 10-inch internal diameter is designed to move high volumes of slurry efficiently, supporting dredging, mining, wastewater, and industrial discharge operations where consistent flow and throughput are essential.
Gum-Lined, Abrasion-Resistant Inner Tube
The hose features a heavy-duty gum-lined rubber liner engineered to withstand abrasive solids, corrosive materials, and high-solids slurry while maintaining smooth internal flow and reducing wear over time.
150 PSI Working Pressure for Reliable Discharge Applications
Rated for continuous operation at 150 PSI, the hose is well-suited for slurry discharge systems that require stable pressure handling and dependable performance in demanding operating conditions.
Steel Wire Helix with Multi-Layer Reinforcement
Reinforced with steel-braided synthetic cord and an integrated steel wire helix, the hose delivers excellent resistance to collapse, deformation, and pressure fluctuations while retaining necessary flexibility.
ANSI 150 PSI Flange Connections
Standard ANSI 150 PSI flanges allow direct integration with common industrial pipe and hose systems, simplifying installation and ensuring secure, leak-resistant connections.
One Rotatable Flange for Easier Installation
A rotating flange on one end improves alignment during installation and maintenance, reducing stress on the hose, flanges, and connected piping.
Controlled Flexibility for 0°–45° Bending Conditions
Designed to accommodate bending angles from 0° to 45°, the hose can be routed around equipment and site obstacles without restricting flow or compromising structural integrity.
Durable Outer Cover for Industrial Environments
The outer rubber cover provides resistance to aging, environmental exposure, and corrosion, supporting reliable operation in outdoor, industrial, and high-wear job-site conditions.
Operational & Industrial Advantages
Efficient Slurry Transfer with Consistent Flow Performance
The 10-inch internal diameter supports steady, high-volume slurry movement, helping maintain pumping efficiency and reduce transfer time in dredging, mining, and industrial discharge operations.
Extended Hose Life in Abrasive and High-Solids Applications
A gum-lined, abrasion-resistant inner tube combined with heavy-duty reinforcement minimizes internal wear, allowing the hose to perform reliably over extended operating cycles.
Reduced Downtime and Improved System Reliability
The reinforced hose structure and stable pressure handling help lower the risk of hose deformation, leakage, or premature failure, reducing unplanned shutdowns.
Simplified Installation and Maintenance Efficiency
ANSI 150 PSI flange connections, including a rotatable flange on one end, streamline alignment and installation while minimizing mechanical stress during maintenance or replacement.
Stable Performance Under Variable Load Conditions
Steel-braided synthetic cord and an integrated steel wire helix maintain hose shape and flow integrity when handling dense, uneven, or abrasive slurry mixtures.
Flexibility for Complex Job-Site Routing
Designed to operate within 0°–45° bending conditions, the hose adapts easily to site constraints, uneven terrain, and tight routing requirements without restricting flow.
Dependable Operation in Industrial Environments
The durable outer cover resists aging, corrosion, and environmental exposure, supporting consistent performance in outdoor, industrial, and high-wear operating conditions.
Lower Long-Term Operating Costs
Longer service life, reduced maintenance demands, and reliable performance contribute to a lower total cost of ownership for industrial operators managing slurry discharge systems.
10-Inch Slurry Discharge Hose – Technical Specifications
The following table presents a summarized reference for the 4″ Slurry Hose, including key dimensional details, operating limits, construction materials, flange specifications, and minimum bend radius. Specifications are provided for general guidance only and are based on the manufacturer’s official technical documentation. Actual performance and suitability may vary depending on application conditions.
Parameter | Specification |
|---|---|
Product Type | Slurry Discharge Hose |
Nominal Hose Size | 10 in (254 mm) |
Working Pressure | 150 PSI |
Safety Factor | 3:1 |
Hose Length (Standard) | 33 ft (10 m) |
Hose Weight | 618 lbs (280.3 kg) |
Operating Temperature Range | 68 °F to 176 °F (20 °C to 80 °C) |
Inner Diameter (ID) | 10 in (254 mm) |
Outer Diameter (OD) | 11.3 in (288 mm) |
Inner Layer Thickness | 5/16 in (8 mm) |
Tube (Inner Liner) | NR (Natural Rubber), BR (Butadiene Rubber), SBR (Styrene-Butadiene Rubber) |
Reinforcement | High tensile strength fabrics with helix steel wire |
Cover (Outer Layer) | NR (Natural Rubber), CR (Chloroprene Rubber) |
Flange Standard | ANSI 150 PSI |
Flange Type | Fixed / Swivel |
Nominal Flange Diameter | 10 in (254 mm) |
Number of Bolt Holes | 12 |
Bolt Hole Diameter | 1 in (26 mm) |
Flange Thickness | 1.18 in (30 mm) |
Outer Diameter of Flange | 16 in (405 mm) |
Nominal Diameter | 10 in (254 mm) |
Bend Radius Range | 60 in – 100 in (1530 mm – 2540 mm) |
Anaconda 10-Inch Slurry Discharge Hose – Specification Comparison Table
The table below presents a consolidated technical overview of 10″ slurry discharge hose specifications to support accurate specification, procurement, and operational decision-making in industrial applications.
Hose Size | Nominal Diameter | Working Pressure | Standard Length | Approx. Weight | Bend Radius Range | Flange Standard |
|---|---|---|---|---|---|---|
4 inch | 4” (102 mm) | 150 PSI | 33 ft (10 m) | 199 lbs (90.3 kg) | 24.5” – 40” (620 – 1020 mm) | ANSI 150 PSI Fixed / Swivel |
6 inch | 6” (152 mm) | 150 PSI | 33 ft (10 m) | 331 lbs (150.1 kg) | 36” – 60” (920 – 1520 mm) | ANSI 150 PSI Fixed / Swivel |
8 inch | 8” (203 mm) | 150 PSI | 33 ft (10 m) | 485 lbs (220 kg) | 48” – 80” (1220 – 2030 mm) | ANSI 150 PSI Fixed / Swivel |
10 inch | 10” (254 mm) | 150 PSI | 33 ft (10 m) | 618 lbs (280.3 kg) | 60” – 100” (1530 – 2540 mm) | ANSI 150 PSI Fixed / Swivel |
12 inch | 12” (300 mm) | 150 PSI | 33 ft (10 m) | 850 lbs (385.5 kg) | 72” – 120” (1820 – 3040 mm) | ANSI 150 PSI Fixed / Swivel |
Selection Guidelines
- The 10″ slurry hose is engineered for high-volume discharge applications where increased flow capacity and dependable performance are critical. It is well-suited for demanding industrial slurry transfer operations where throughput takes priority over handling considerations.
- While smaller sizes (4″–8″) are typically selected for lighter-duty or space-restricted installations, the 10″ and 12″ hoses are purpose-built for continuous, heavy-duty service. All sizes share the same abrasion-resistant construction, high-tensile fabric with helix steel wire reinforcement, ANSI 150 PSI flanges, and a 3:1 safety factor, ensuring consistent performance across the range.
- For systems requiring even greater discharge capacity, the 12″ size is available to support maximum-volume transfer in large-scale operations.
Speak With Technical Team
Get in touch with Anaconda Pipe & Hose for industry-ready pipe and hose solutions.

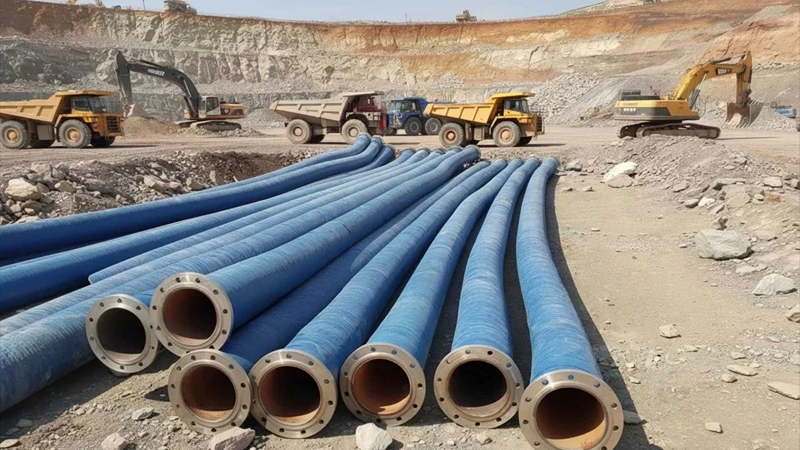

Pipe and Hose Rentals
Anaconda Pipe and Hose offers flexible short-term rental programs for 10″ slurry discharge hoses to support temporary or project-specific pumping requirements. Each 10″ rental hose is supplied in standard lengths (10 m/subject to availability) and equipped with ANSI 150 PSI flanged connections for quick installation and seamless integration with existing discharge systems. This rental solution is ideal for planned maintenance shutdowns, emergency equipment replacements, and short-term industrial or marine slurry transfer applications where a permanent hose installation is unnecessary.
Industries Served
The Anaconda 10″ Slurry Discharge Hose is designed to meet the demands of industries handling abrasive, high-solids materials. Its abrasion-resistant rubber tube, reinforced with high-tensile fabric and helix steel wire, supports reliable high-volume discharge in continuous operations. Supplied with ANSI 150 PSI flanged connections and a 3:1 safety factor, it provides consistent performance across mining, dredging, construction, chemical, agricultural, and wastewater applications.
Dredging
The 10″ slurry hose is commonly used in hydraulic dredging to discharge sand, sediment, and seawater. Its abrasion-resistant tube and ANSI 150 PSI flanged connections support reliable, high-volume material transfer in marine environments.
Mining
In mining operations, the 10″ slurry hose handles abrasive slurries containing ore, tailings, and mineral solids. The reinforced construction ensures durability and stability during continuous, high-flow discharge applications.
Oil Industry
The 10″ slurry hose is used to transfer drilling fluids, cuttings, and solid-laden slurries in oilfield operations. Its heavy-duty reinforcement and standard flanges allow secure integration into temporary and project-based discharge systems.
Construction
Construction and tunneling projects use the 10″ slurry hose for slurry conveyance, dewatering discharge, and concrete washout. The large diameter supports high flow rates while maintaining flexibility for jobsite routing.
Agricultural
In agricultural applications, the 10″ slurry hose is used for pumping manure, fertilizer slurries, and organic waste. Its abrasion-resistant inner tube helps manage fibrous and high-solid materials during seasonal operations.
Sewage and Wastewater
The 10″ slurry hose supports sludge, grit, and sediment transfer in sewage and wastewater treatment facilities. It is well-suited for maintenance, bypass pumping, and temporary discharge applications.
Chemical
Chemical processing facilities use the 10″ slurry hose to move abrasive chemical slurries and solid-containing fluids. The hose’s durable construction and ANSI-standard flanges ensure consistent performance in industrial environments.
Case study - High-Volume Slurry Discharge Solution for a Coastal Dredging & Industrial Transfe

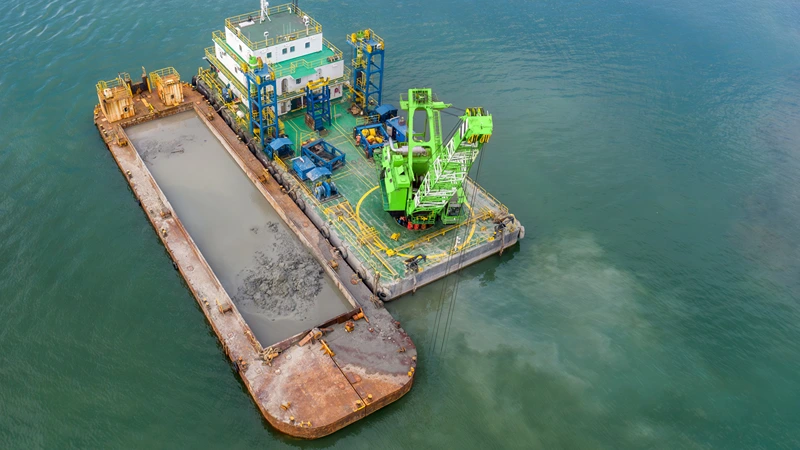

Project Overview
A contractor operating a combined coastal dredging and industrial material transfer project required a reliable discharge hose solution to move abrasive sand, sediment, and seawater from pumping equipment to designated disposal areas. The project demanded high flow capacity, consistent performance, and compatibility with existing ANSI-flanged discharge systems, all within a tight operational schedule.
Challenge
The primary challenge was handling highly abrasive, solid-laden slurry without premature hose wear or unplanned downtime. Conventional hoses previously used on-site suffered from rapid abrasion, limited flexibility, and connection issues during frequent setup changes. Additionally, the hose assembly needed to support continuous discharge operations without exposure to vacuum conditions.

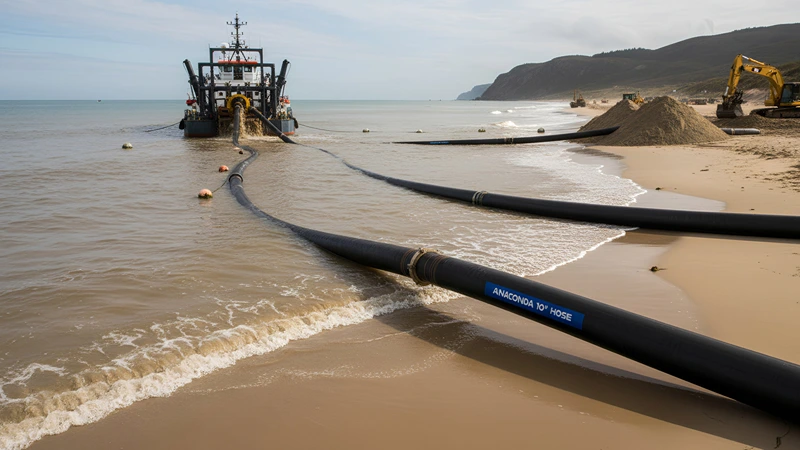

Solution
The contractor selected the Anaconda 10″ Slurry Discharge Hose, featuring an abrasion-resistant NR/BR/SBR rubber tube and reinforced with high-tensile fabric and helix steel wire for structural stability. Supplied in standard 33 ft (10 m) lengths with ANSI 150 PSI fixed and swivel flanges, the hose integrated seamlessly into the existing discharge pipeline. Its discharge-only design, 3:1 safety factor, and operating temperature range of 68°F to 176°F (20°C to 80°C) made it well-suited for the project’s operating conditions.

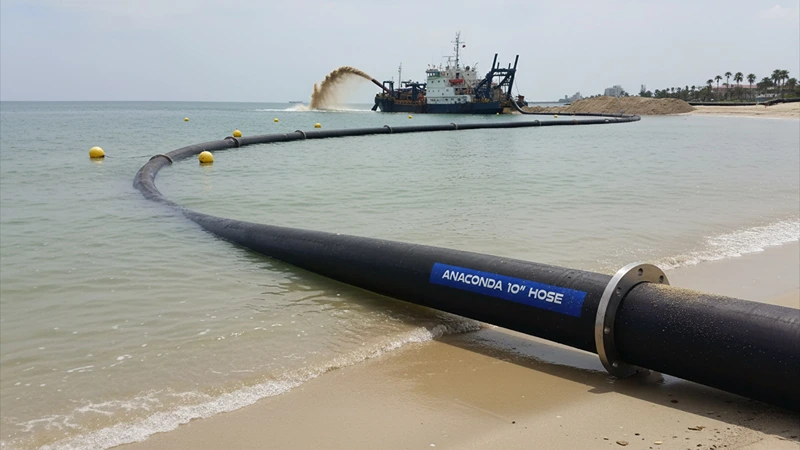

Outcome
The 10″ slurry hose delivered consistent, high-volume discharge throughout the project with no unplanned stoppages or connection failures. Abrasion resistance significantly reduced maintenance requirements, while the flexible construction simplified routing and repositioning during operations. As a result, the contractor achieved improved pumping efficiency, reduced downtime, and extended hose service life, ensuring the project was completed on schedule and within operational targets.
Frequently Asked Questions About 10" Slurry Hose
What is the inner diameter of the 10″ slurry hose?
The hose has an inner diameter of 10 inches (254 mm), allowing high-volume slurry discharge.
What is the working pressure rating of the hose?
The 10″ slurry hose is rated for a working pressure of 150 PSI, suitable for demanding discharge applications.
What materials are used in the hose tube?
The inner tube is manufactured from NR (Natural Rubber), BR (Butadiene Rubber), SBR (Styrene-Butadiene Rubber) compounds, providing abrasion resistance for slurry and solid-laden fluids.
How is the hose reinforced?
It is reinforced with high-tensile-strength fabric and a helix steel wire, ensuring structural stability under continuous flow conditions.
What type of flange connections are supplied?
The hose is supplied with ANSI 150 PSI standard fixed or swivel flanges, allowing easy integration with existing discharge systems.
What is the standard hose length?
The standard supplied length is 33 feet (10 meters), subject to availability.
What is the operating temperature range for these flexible hoses?
The hose is designed to operate within a temperature range of 68°F to 176°F (20°C to 80°C).
Is the hose suitable for suction or vacuum applications?
No. The hose is designed for discharge-only applications and is not suitable for negative pressure or vacuum service.
What is the safety factor of the hose?
The hose is built with a 3:1 safety factor, providing additional reliability under rated operating conditions.
What applications is the 10″ slurry hose best suited for?
It is ideal for the discharge of seawater, sand, and abrasive slurry materials, commonly used in dredging, mining, construction, industrial, and wastewater operations.
