Power Generation
Power generation facilities rely on durable fluid transport systems for cooling water, ash slurry, and wastewater management. Anaconda Pipe and Hose provides high-performance HDPE pipe and industrial slurry hose designed for these demanding environments. HDPE pipe offers corrosion-resistant water transport with smooth internal surfaces that support efficient flow in cooling and process systems. Industrial slurry hose is designed to handle abrasive ash slurries and sediment mixtures while maintaining durability under pressure. Together, these solutions help power plants maintain reliable operations, reduce maintenance demands, and improve long term system performance.

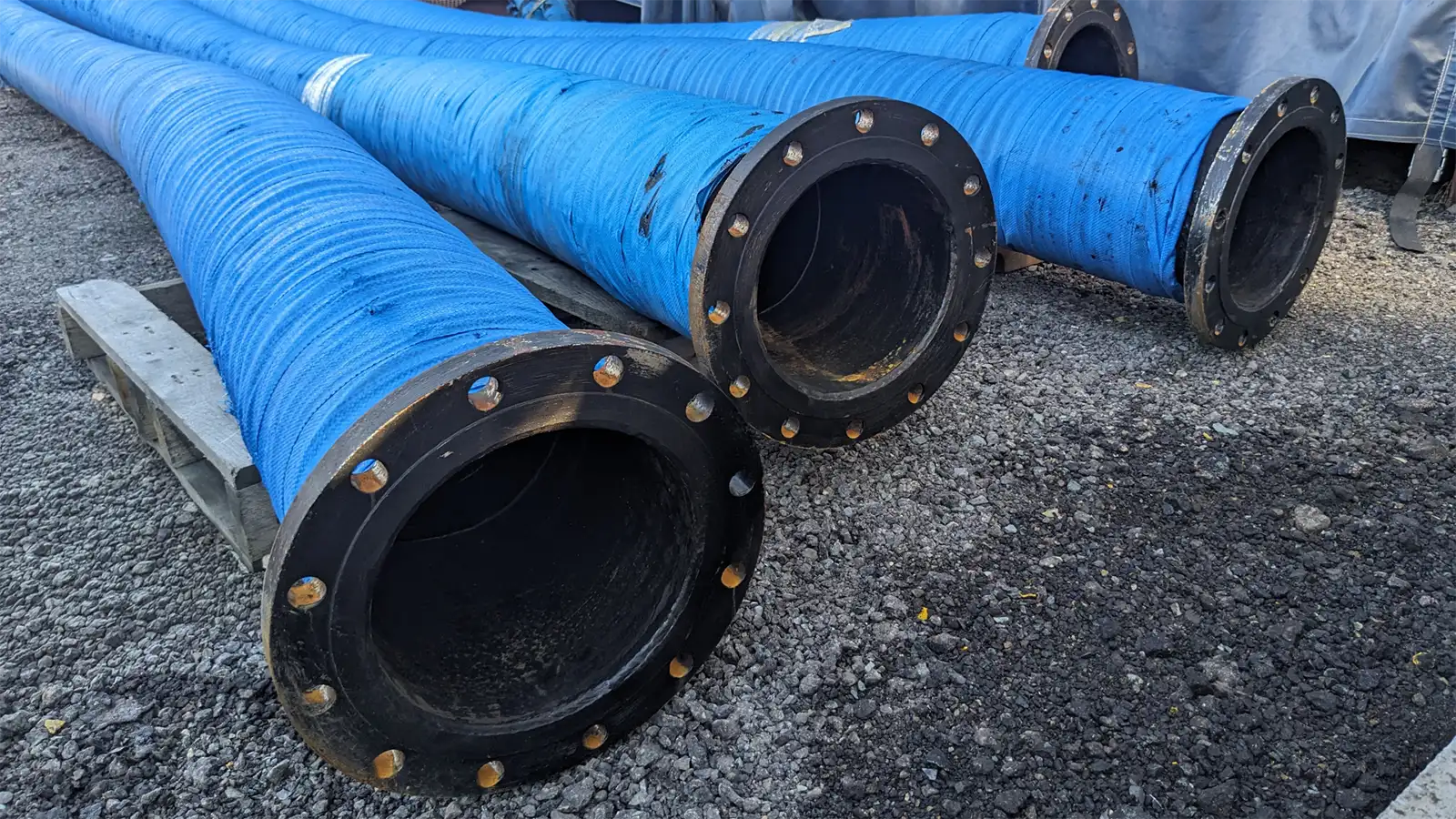

Why HDPE Pipe and Slurry Hose Work in Power Plants
- HDPE pipe provides excellent corrosion resistance when transporting cooling water and treated process fluids, helping prevent rust and degradation that commonly affect metal piping systems in power plants.
- Industrial slurry hose is built to handle abrasive materials such as fly ash and bottom ash slurry, allowing reliable transport of solids without excessive wear or frequent replacement.
- Industrial slurry hose offers flexible routing between pumps, tanks, separators, and ash-handling systems, where rigid piping can be difficult to install.
- HDPE pipe systems use ANSI 150 flanges that create strong, leak-resistant connections capable of handling pressure fluctuations in power plant operations.
- Both HDPE pipe and slurry hose systems reduce maintenance demands by resisting corrosion, abrasion, and scaling in harsh industrial environments.
- These materials provide long service life in demanding power generation conditions, including vibration, pressure variation, and exposure to abrasive slurry mixtures. Final product selection should be based on media, temperature, pressure, solids content, and connection requirements
Technical Specifications
Metric | HDPE Pipe | Industrial Slurry Hose |
|---|---|---|
Primary Function | Transport of water, slurry, and industrial fluids through semi-permanent pipelines | Flexible transfer of abrasive slurry, sand, and high-solids mixtures |
Typical Diameter Range | Large diameters commonly used in industrial pipelines (6 in to 36 in+, depending on configuration) | 4 in, 6 in, 8 in, 10 in, and 12 in inner diameters available |
Standard Section Length | 36 ft (11 m) pipe sections | 33 ft (10 m) hose sections |
Pressure Handling | High-pressure capability depending on SDR and pipe wall thickness | Moderate pressure ratings depending on hose size (examples include 110–150 PSI) |
Construction Material | High-density polyethylene (HDPE) thermoplastic | Reinforced rubber compounds (NR, BR, SBR) for abrasion resistance |
Abrasion Resistance | Good inherent resistance with smooth bore, reducing wear | Very high abrasion resistance is designed for slurry and solids transport |
Internal Surface | Smooth internal bore that reduces friction and improves flow efficiency | Smooth rubber liner designed for slurry discharge flow |
Flexibility | Semi-rigid pipe structure with some flexibility | Highly flexible hose for routing around equipment and uneven terrain |
Connection System | Bauer fittings or ANSI flange connections, depending on configuration | ANSI flange connections with a rotatable flange for alignment |
Installation Type | Fixed or semi-permanent pipeline systems | Flexible connections or short pipeline segments |
Operating Application | Water transport, slurry pipelines, dredging discharge lines, and industrial fluid transfer | Slurry discharge, sand transport, ash slurry handling, abrasive material movement |
Flow Capacity | Designed for high-volume fluid movement across large pipelines | Designed for high-solids slurry discharge with stable flow |
Structural Behavior | Maintains shape under pressure due to pipe wall thickness | Reinforced hose structure resists collapse while remaining flexible |

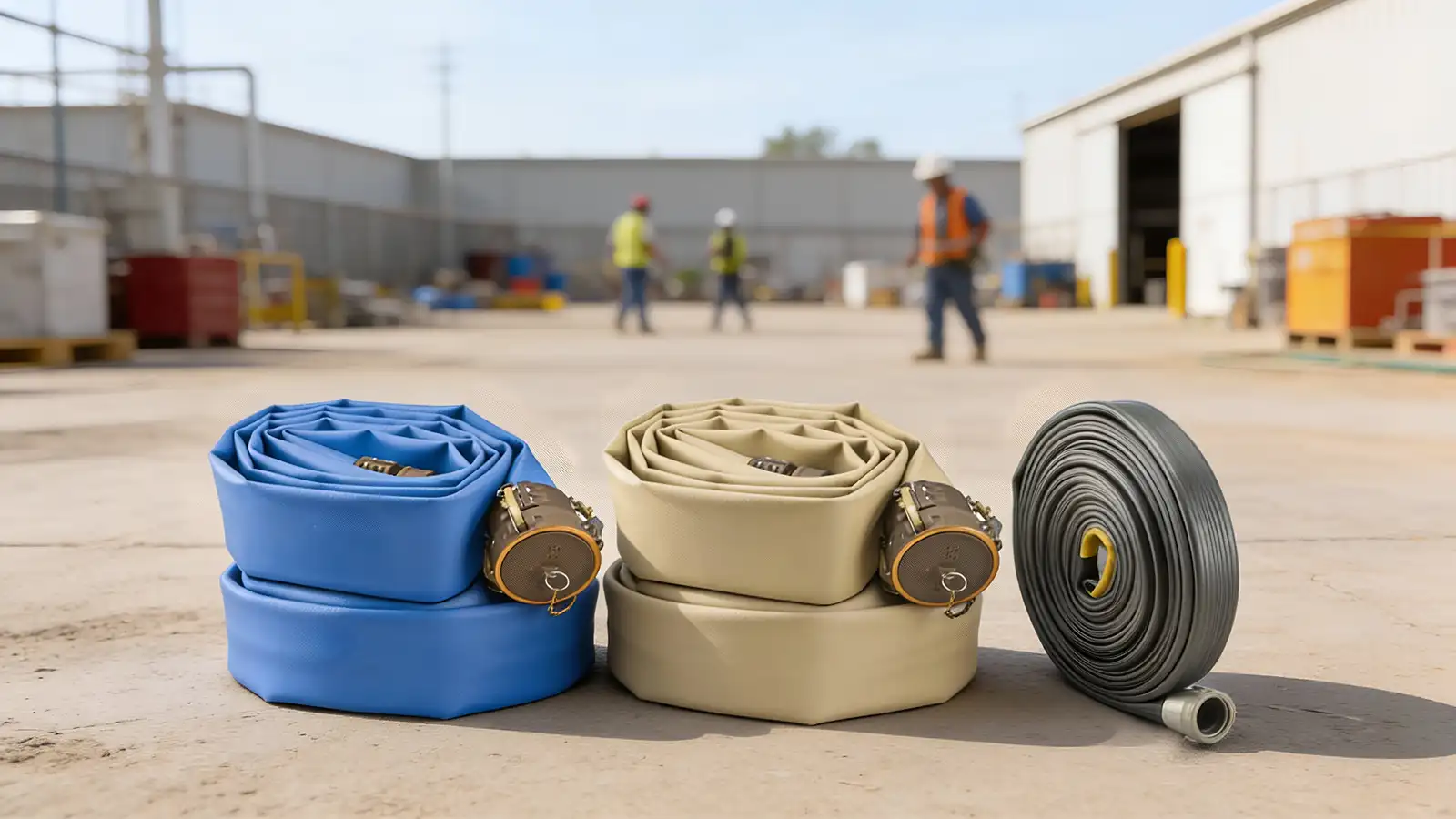

Pipe and Hose Rentals
Anaconda Pipe and Hose provides HDPE pipe and industrial slurry hose rental solutions to support power generation facilities during maintenance, system upgrades, or temporary operations. Rental systems allow plants to maintain cooling water circulation, ash slurry transport, and wastewater transfer without interrupting critical processes. HDPE pipe rentals support longer fluid transport runs, while slurry hoses provide flexible connections between pumps, separators, and ash handling equipment. These temporary systems help power plants maintain continuous operation while permanent infrastructure is repaired, replaced, or expanded.
Speak With Technical Team
Get in touch with Anaconda Pipe & Hose for industry-ready pipe and hose solutions.
Industrial Application for Power Generation
Cooling Water Intake and Distribution
Power plants move large volumes of water through cooling systems to regulate condenser and turbine temperatures. HDPE pipes are used to transport cooling water from intake points through plant distribution networks. Their corrosion resistance supports long-term performance in treated water environments. ANSI 150 flanged connections with one fixed and one rotatable flange simplify alignment during installation and maintenance.
Ash Slurry Transport Systems
Coal and biomass power plants generate fly ash and bottom ash that must be transported as slurry. Industrial slurry hoses are designed to handle these abrasive mixtures without rapid wear. Their reinforced construction allows reliable movement of ash slurry between collection points, pumps, and disposal or storage areas.
Pump and Equipment Connections
Industrial slurry hoses are often used to connect pumps, separators, and processing equipment within power plants. Their flexibility helps absorb vibration and movement that could stress rigid piping systems. This supports reliable slurry or water transfer between equipment.
Wastewater and Process Water Transfer
Power plants generate wastewater from cooling operations, ash handling systems, and treatment processes. HDPE pipes provide corrosion-resistant transport between treatment units, storage areas, and discharge systems while maintaining consistent flow performance.
Temporary Bypass and Maintenance Operations
During maintenance or system upgrades, temporary fluid transport lines may be required. Industrial slurry hoses allow quick deployment for bypass lines that maintain water or slurry flow while equipment is serviced or replaced.
Case study

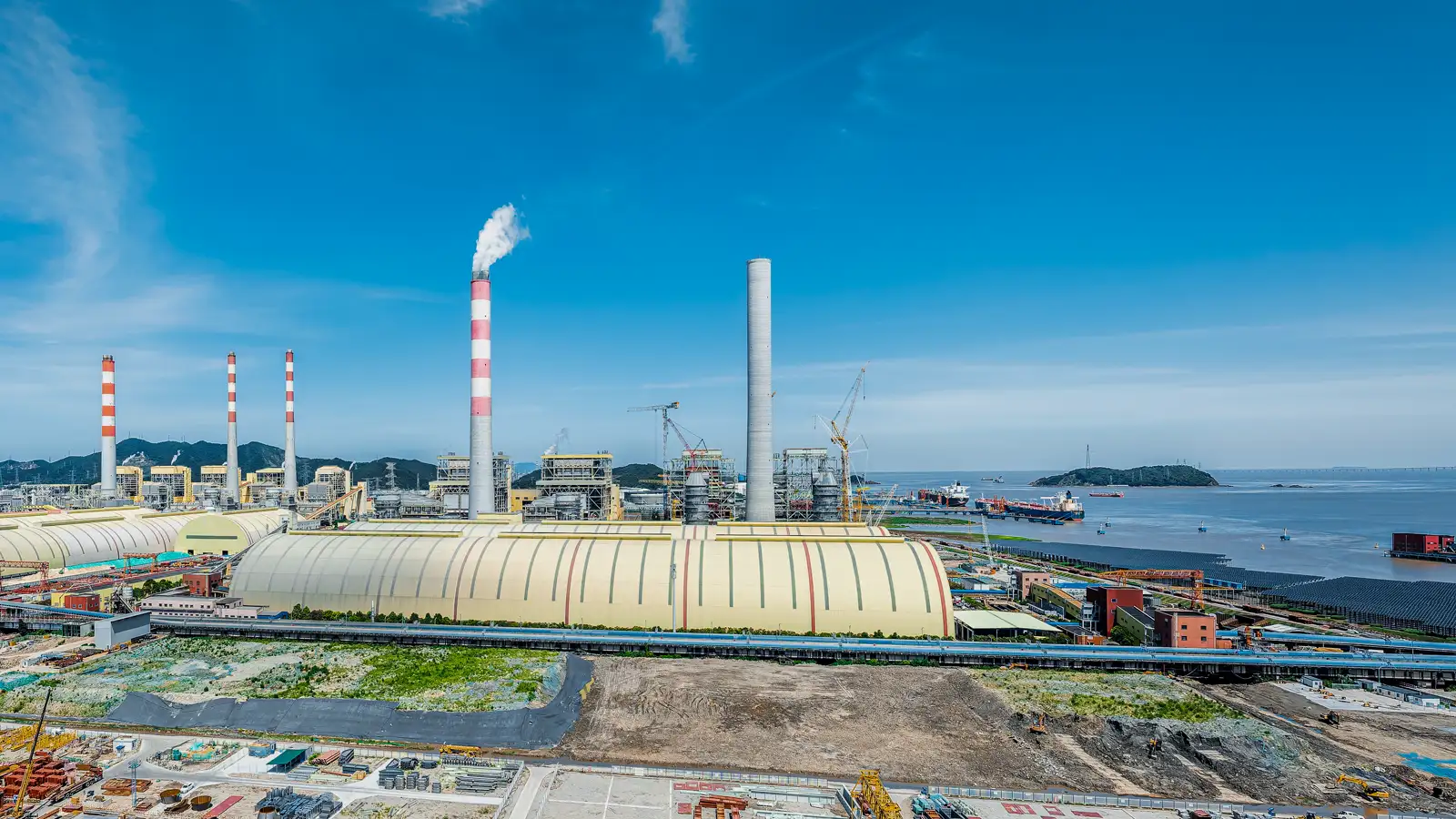

Cooling Water Pipeline Upgrade at a Coastal Thermal Power Plant
The Problem
A 600 MW coastal thermal power plant was experiencing recurring corrosion and leakage in its cooling water pipeline network. The system transported approximately 70,000 to 90,000 gallons of cooling water per minute from the seawater intake to condenser units. The existing carbon steel pipeline was deteriorating due to constant exposure to saline water and treatment chemicals. Internal corrosion buildup was also reducing pipe efficiency by increasing friction losses, thereby limiting cooling water flow during peak generation periods. Maintenance crews were replacing sections of pipeline every 12 to 18 months, resulting in repeated shutdowns and maintenance windows that typically lasted 24 to 36 hours per repair cycle.
The Solution
The facility replaced approximately 1,200 feet of its aging cooling water pipeline with HDPE pipe supplied by Anaconda Pipe and Hose. The corrosion-resistant HDPE material was selected to withstand continuous exposure to seawater and treatment chemicals used in the plant’s cooling circuit. The pipeline sections were installed using ANSI 150 flanged connections, where one flange remained fixed and the other rotatable to simplify alignment during installation. This configuration allowed installation crews to assemble the pipeline approximately 30 percent faster than the previous steel pipeline replacements. The smooth internal pipe surface also improved hydraulic efficiency throughout the cooling water system.

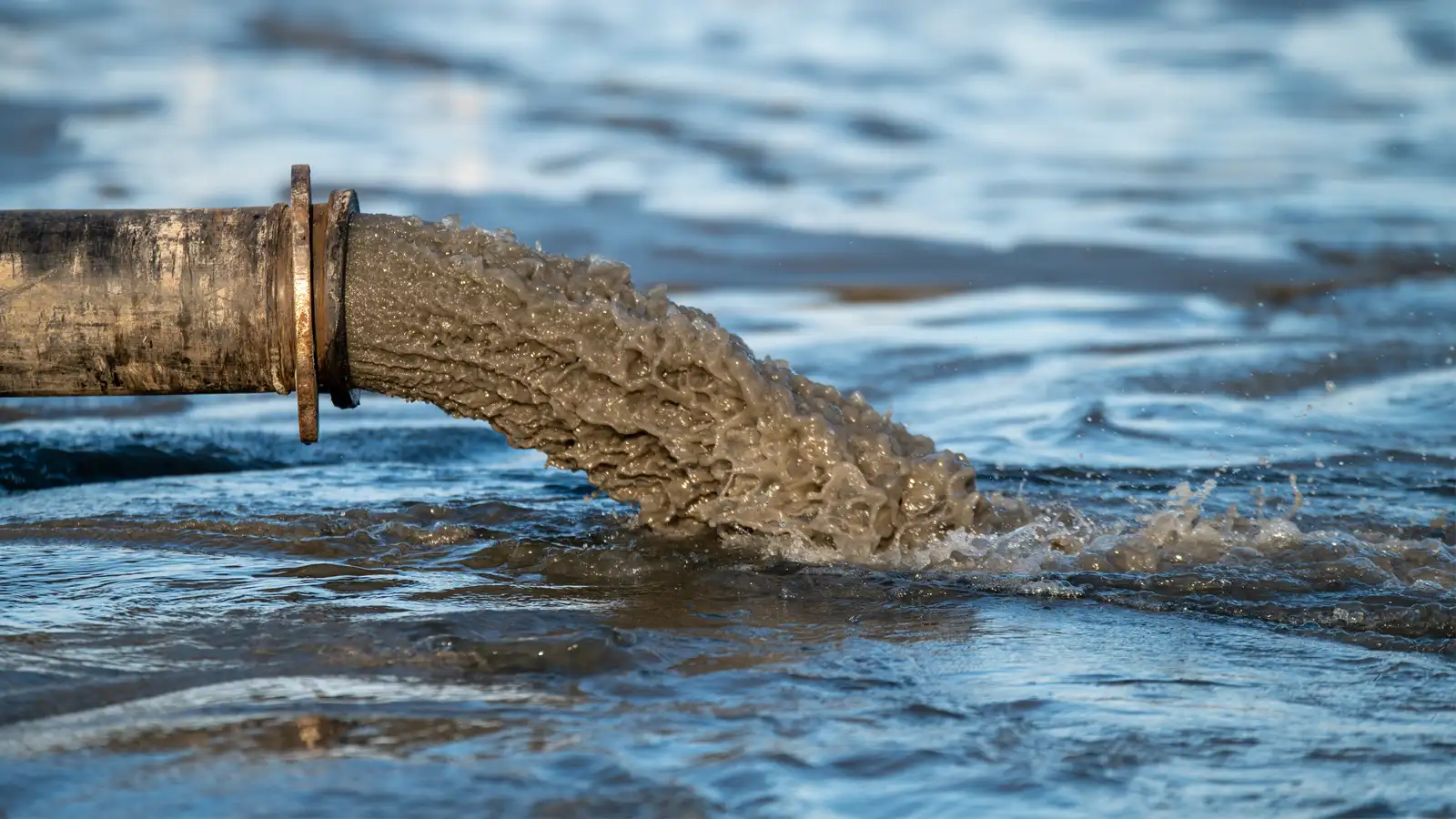

The Result
After installation, the upgraded HDPE pipeline restored full cooling water flow capacity to the condenser system, supporting consistent circulation rates of up to 85,000 gallons per minute. Maintenance-related shutdowns associated with pipeline corrosion were eliminated, reducing annual maintenance downtime by an estimated 60 to 70 hours. The plant also reduced maintenance costs related to pipe repairs and replacements by approximately 35 percent. With improved flow efficiency and corrosion resistance, the cooling water system achieved more stable long-term performance while reducing operational disruptions to the power generation process.
Frequently Asked Questions
What fluid transport systems are used in power generation facilities?
Power plants move large volumes of cooling water, ash slurry, and wastewater through pipeline networks. Cooling systems require high-flow water transport between intake structures, condensers, and cooling towers. Ash handling systems move fly ash and bottom ash slurry to storage or disposal areas. These operations require durable pipe and hose systems that can handle high flow rates, abrasive materials, and continuous operation.
When should HDPE pipe be used instead of an industrial slurry hose?
HDPE pipe is typically used for fixed pipeline systems such as cooling water transport, wastewater lines, and long-distance slurry pipelines. Industrial slurry hoses are used where flexibility is needed, such as pump connections, equipment connections, or temporary bypass lines. Many power plants use both products together to create a reliable fluid transport system.
Why is HDPE pipe suitable for cooling water systems in power plants?
Cooling water often contains minerals, treatment chemicals, or saline content that can corrode metal pipelines. HDPE pipe resists corrosion and chemical degradation, allowing it to maintain structural integrity over long periods. The smooth internal surface also supports efficient water flow through cooling circuits.
Can industrial slurry hoses handle abrasive ash slurry?
Yes. Industrial slurry hoses are designed to transport abrasive mixtures such as fly ash and bottom ash slurry. Their reinforced construction and abrasion-resistant liners allow them to handle solids without rapid wear, making them suitable for ash-handling systems in power plants.
What connection system is used with HDPE pipes and slurry hoses?
HDPE pipe systems commonly use ANSI 150 flanged connections, with one flange fixed and the other rotatable for easier alignment during installation. Industrial slurry hoses also use flanged connections, allowing them to be integrated with pumps, valves, and pipeline infrastructure.
How do HDPE pipes and slurry hoses reduce maintenance in power plants?
Both products are designed for harsh industrial environments. HDPE pipe resists corrosion and scaling, while slurry hoses resist abrasion from solids. This helps reduce leaks, wear, and unplanned repairs in cooling-water and ash-handling systems.
What factors should procurement teams consider when selecting pipe or hose systems?
Procurement teams should evaluate operating pressure, material being transported, pipeline length, and installation conditions. Cooling water systems prioritize corrosion resistance, while slurry transport requires abrasion resistance. Compatibility with existing equipment and connections is also important.
Can HDPE pipes and slurry hoses be used together in power plants?
Yes. HDPE pipe is commonly used for main pipeline sections, while slurry hoses are used for flexible connections between pumps and equipment. Using both products together allows engineers to build fluid transport systems that are durable and adaptable to plant operations.
