Lay flat hose systems are engineered for high-volume fluid transfer, where rapid deployment, compact storage, and pressure reliability are critical. Anaconda lay flat hoses are constructed from reinforced polymer and textile materials to deliver consistent performance across dewatering, water transfer, industrial discharge, and temporary pipeline applications. Available in multiple diameters, pressure classes, and material constructions, these hoses expand to full bore under pressure and collapse flat when drained, minimizing handling time and space required for transport. Smooth internal liners reduce friction loss, while reinforced jackets provide abrasion resistance, dimensional stability, and controlled elongation under load. Select models are suitable for potable water and certified for regulated water transfer applications.
Home
Agricultural
Firefighting
Industrial
Military
Technical Advantages
- Wide pressure and diameter range to support low head transfer through high-pressure pump discharge across multiple applications.
- Multiple material constructions, including PVC, nitrile blends, and TPU to match abrasion, chemical, UV, and hydrolysis exposure conditions.
- Reinforced woven polyester and high tensile jackets provide controlled expansion, dimensional stability, and resistance to kinking or collapse.
- Smooth-bore internal liners reduce frictional losses and improve flow efficiency over long discharge runs.
- Heavy-duty and super-duty models offer enhanced cut, puncture, and drag resistance for harsh jobsite conditions.
- Potable water rated options with NSF 61 certification for municipal, emergency response, and drinking water transfer.
- Static-resist variants with bonded conductive elements to control static buildup during sensitive liquid transfer.
- A compact, lay flat profile simplifies transport, storage, and rapid deployment compared to rigid piping.
- Compatible with standard couplings and available in multiple standard and custom lengths for system flexibility.
- Designed for repeat deployment cycles without loss of pressure performance or structural integrity.

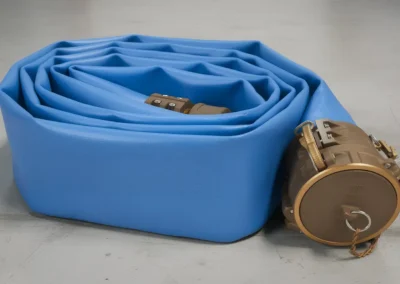

Gallery
Technical Specifications

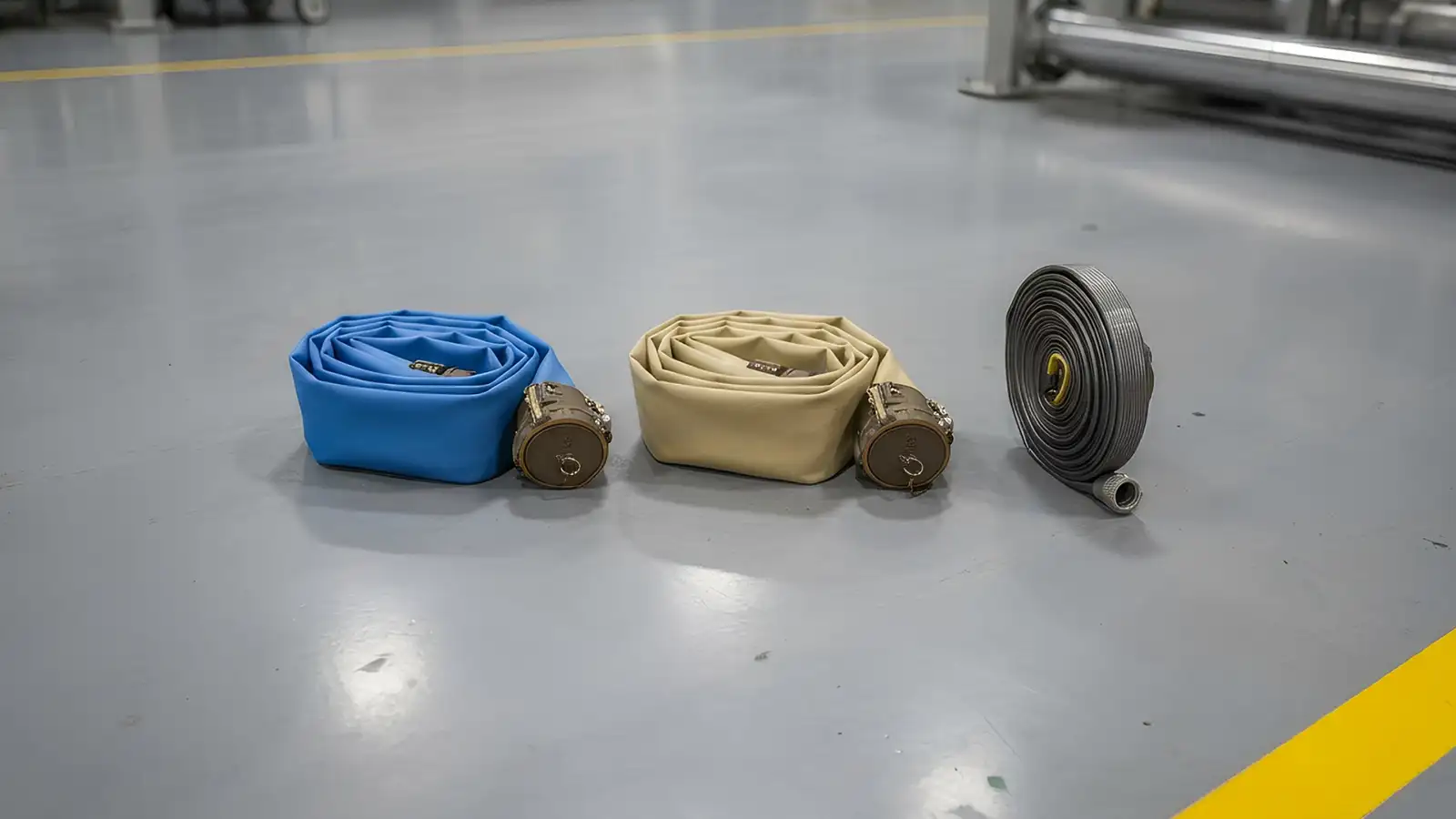

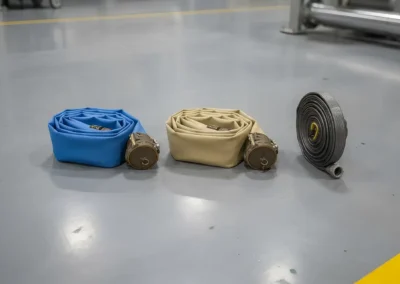

Industrial Lay Flat Hose
- Construction: PVC or nitrile PVC blend with woven polyester reinforcement
- Diameter range: Typically 1 inch to 12 inches
- Working pressure: Approx. 150 to 300 PSI, depending on size
- Proof pressure: Up to 2x working pressure
- Burst pressure: Up to 3x working pressure
- Temperature range: Approx. -36°F to +120°F
- Liner: Smooth bore for reduced friction loss
- Potable water rating: No

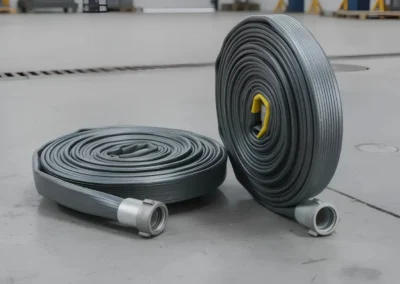

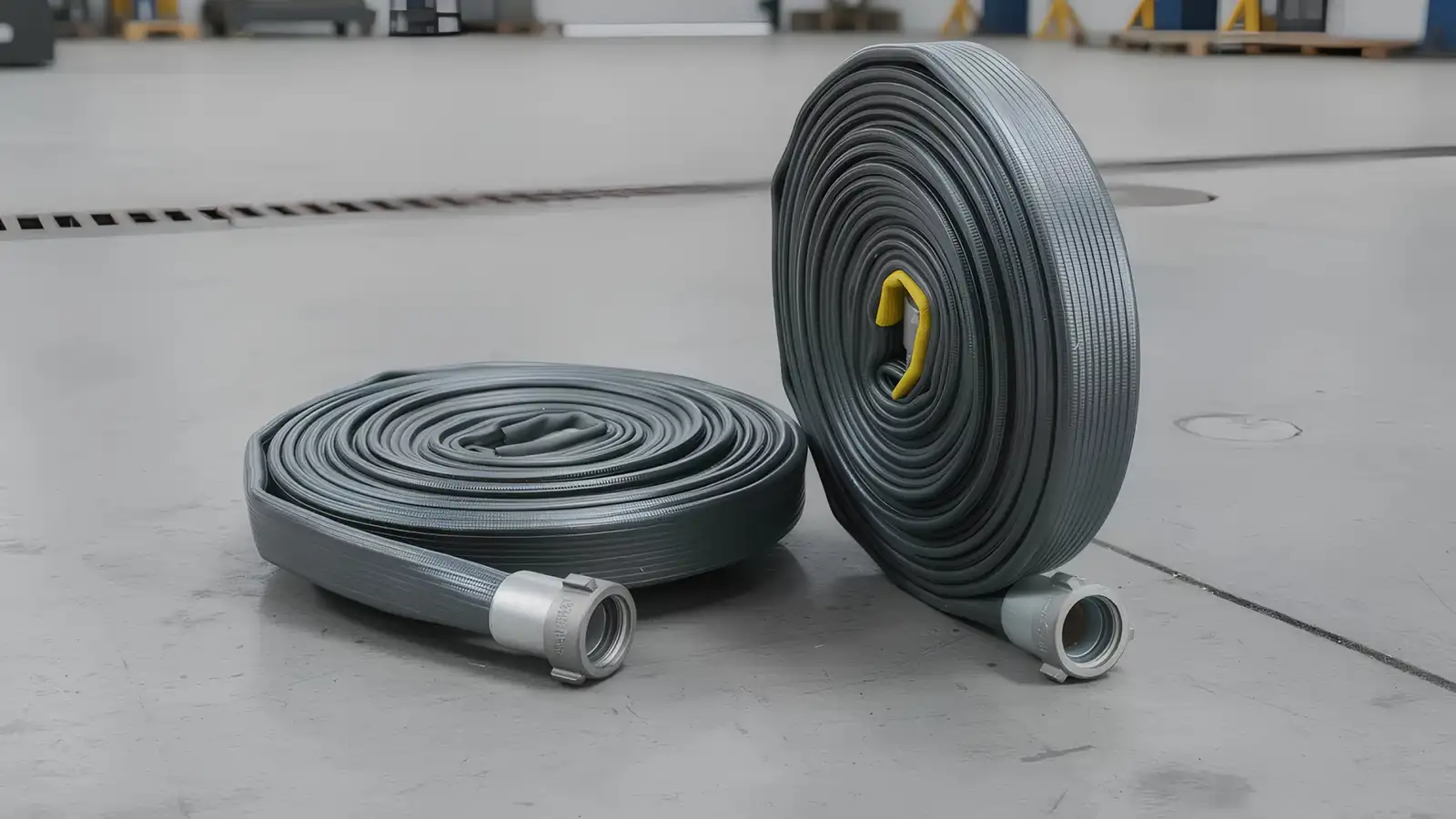

Heavy Duty / Armour Guard Lay Flat Hose
- Construction: Nitrile PVC blend with high tensile polyester reinforcement
- Diameter range: Commonly 1.5 inches to 8 inches
- Working pressure: Up to 300 PSI, depending on diameter
- Proof pressure: Approx. 600 PSI
- Burst pressure: Approx. 900 PSI
- Temperature range: Approx. -36°F to +120°F
- Abrasion resistance: High, suitable for drag applications
- Potable water rating: No

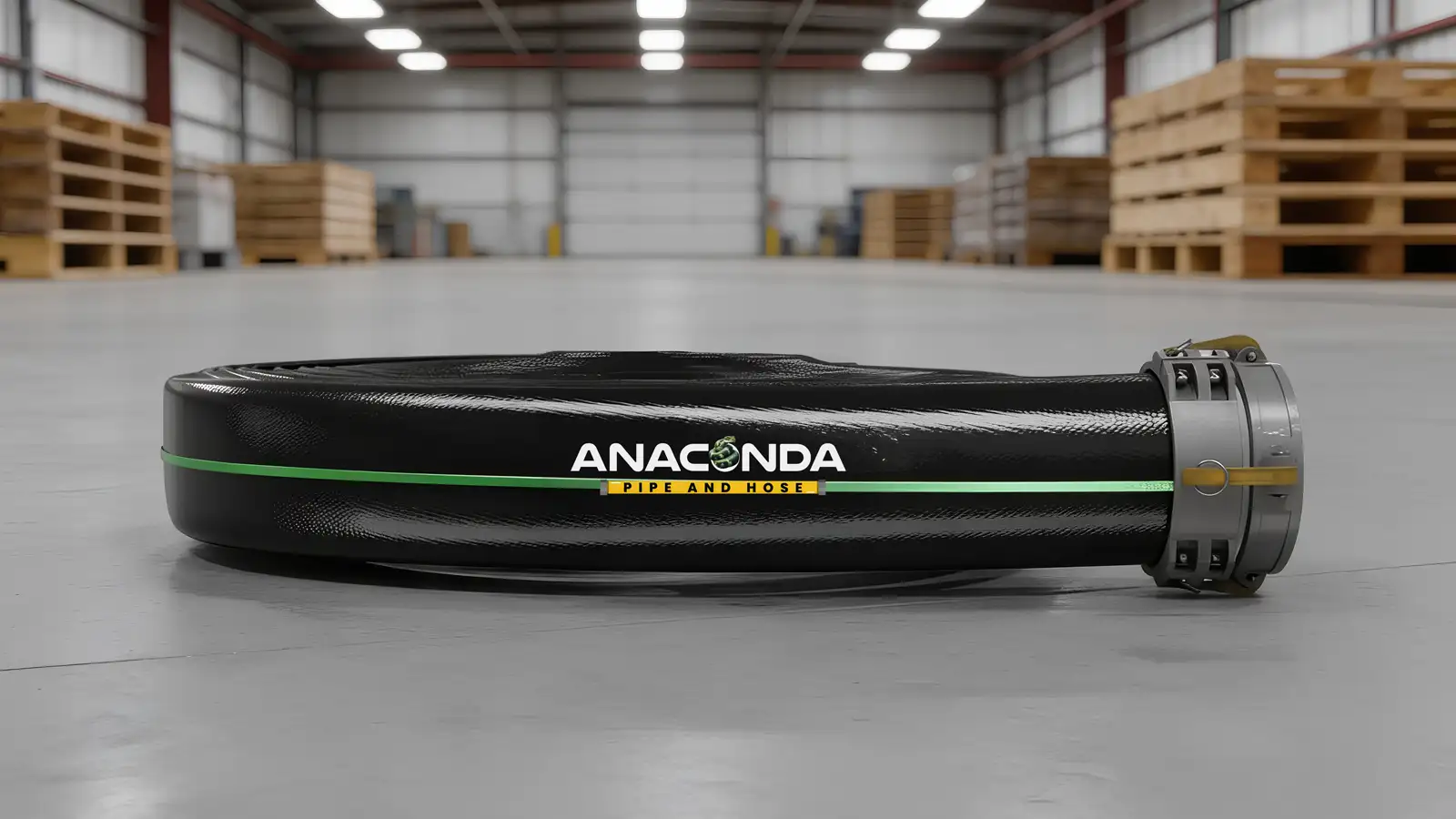

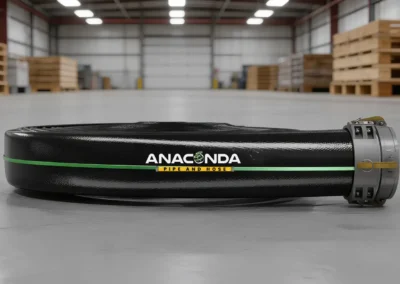

Super Duty Lay Flat Hose
- Construction: Heavy reinforced rubber or polymer liner with multi-layer textile jacket
- Diameter range: Typically 2 inches to 12 inches
- Working pressure: Medium to high pressure ranges, depending on size
- Pressure performance: Designed for continuous duty and high-output pumps
- Abrasion resistance: Very high
- Deployment length: Standard 50 ft and 100 ft sections with custom options
- Potable water rating: Model dependent

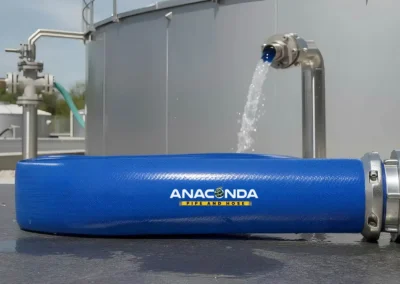

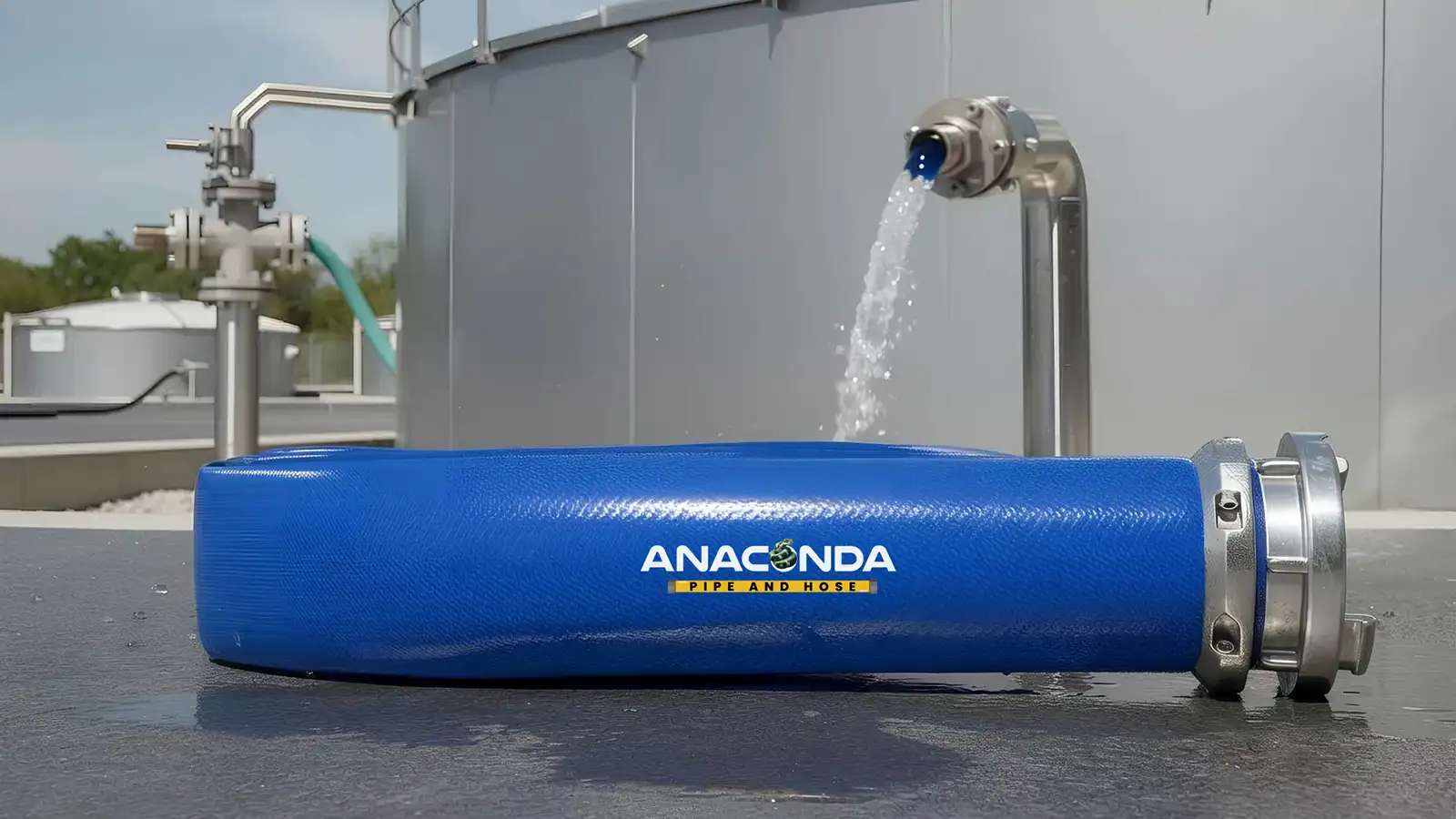

Water Duty Plus Lay Flat Hose
- Construction: Reinforced polymer with potable water-approved liner
- Diameter range: Approx. 1 inch to 10 inches
- Working pressure: Roughly 220 PSI up to 725 PSI, depending on size
- Temperature range: Approx. -58°F to +167°F
- Liner: Smooth, drinking water compatible
- Application focus: High-pressure water transfer
- Potable water rating: Yes

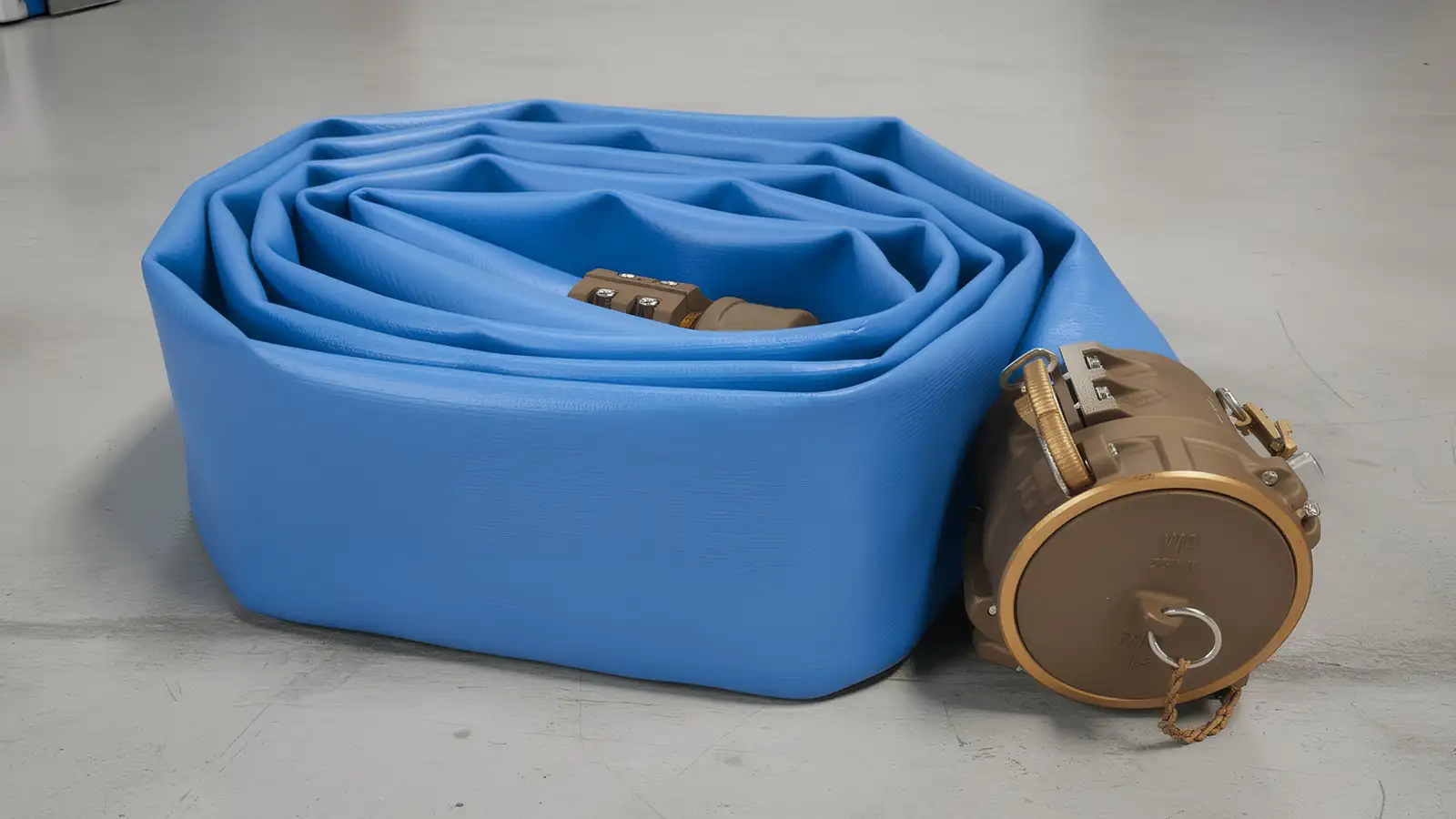

Aqua Guard Lay Flat Hose
- Construction: TPU liner with circular woven polyester reinforcement
- Diameter range: Commonly 2 inches to 12 inches
- Working pressure: Application dependent, moderate to high
- Abrasion resistance: High, including UV and chemical exposure
- Temperature resistance: Suitable for potable and industrial water transfer
- Certification: NSF 61 certified
- Potable water rating: Yes

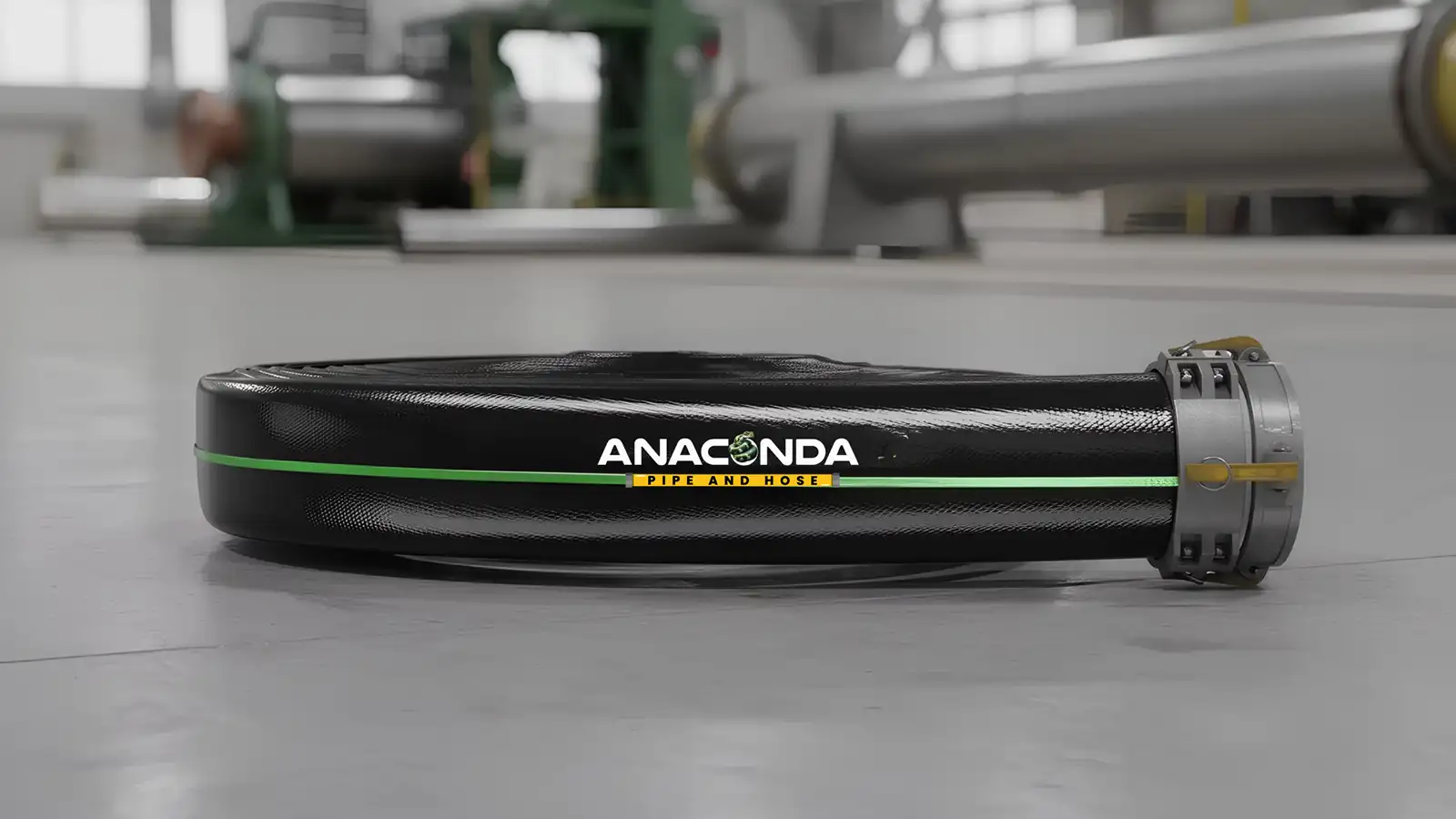

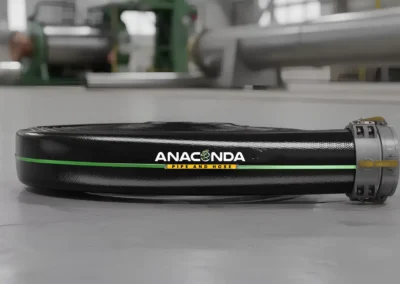

Static Resist Lay Flat Hose
- Construction: Reinforced lay flat hose with integrated conductive elements
- Diameter range: Typically 2 inches to 6 inches
- Working pressure: Comparable to industrial lay flat hose of the same size
- Static control: Longitudinal bonded conductive wires
- Coupling bonding: Required for static dissipation
- Application focus: Static-sensitive liquid transfer
- Potable water rating: No
Comparison
Lay Flat Hose Category | Construction | Diameter Range | Working Pressure Range | Temperature Range | Abrasion Resistance | Potable Water Rated | Certification / Notes |
|---|---|---|---|---|---|---|---|
Industrial Lay Flat Hose | PVC or nitrile PVC with woven polyester reinforcement | ~1 in to 12 in | ~150 to 300 PSI | ~-36°F to +120°F | Moderate | No | General-purpose water and fluid transfer |
Armour Guard (Heavy Duty) | Nitrile PVC blend with a high tensile polyester jacket | ~1.5 in to 8 in | Up to ~300 PSI | ~-36°F to +120°F | High | No | Designed for drag, cut, and puncture resistance |
Super Duty Lay Flat Hose | Heavy reinforced polymer or rubber liner with multi-layer textile jacket | ~2 in to 12 in | Medium to high, size-dependent | Application dependent | Very high | Model dependent | Continuous duty and high-output pump discharge |
Water Duty Plus | Reinforced polymer with potable water-approved liner | ~1 in to 10 in | ~220 to 725 PSI | ~-58°F to +167°F | Moderate to high | Yes | High-pressure water transfer applications |
Aqua Guard | TPU liner with circular woven polyester reinforcement | ~2 in to 12 in | Moderate to high, size-dependent | Potable water service range | High | Yes | NSF 61 certified for drinking water |
Static Resist Lay Flat Hose | Reinforced lay flat hose with integrated conductive elements | ~2 in to 6 in | Comparable to industrial lay flat | Application dependent | Moderate to high | No | Static dissipative design with bonded conductive wires |

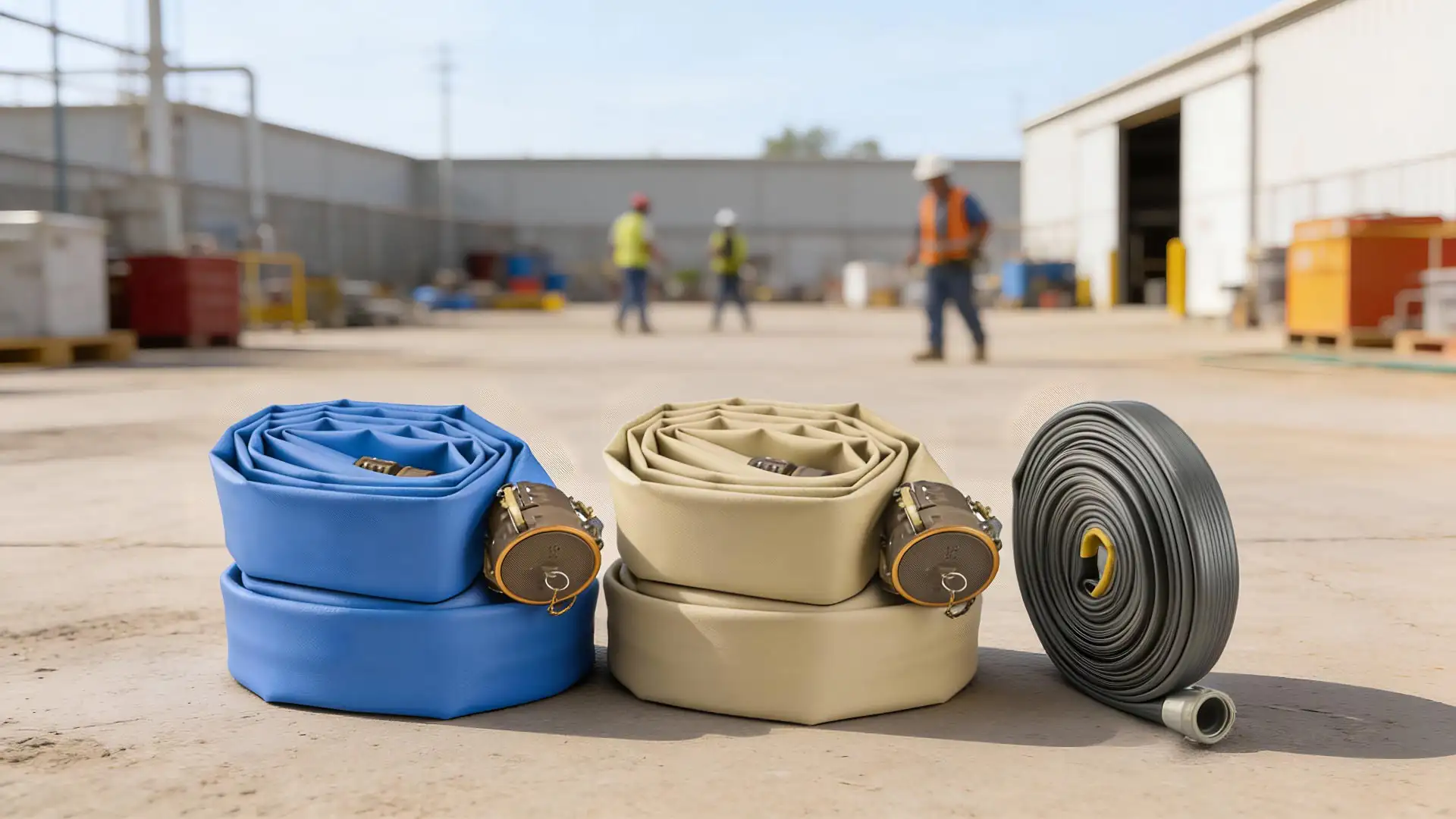

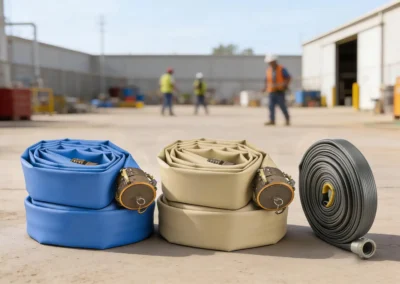

Pipe and Hose Rentals
Anaconda Pipe and Hose offers lay flat hose rental solutions for temporary water transfer, emergency response, bypass pumping, and short-term industrial operations. Rental hoses are available across multiple diameters, pressure classes, and constructions to match dewatering, potable water, and high-pressure discharge requirements. Assemblies can be supplied with compatible couplings and fittings to reduce field setup time and ensure system compatibility with pumps and manifolds. The compact lay flat profile simplifies transport and rapid deployment, making Anaconda Pipe and Hose rental options well-suited for projects that require fast mobilization without long-term capital investment.
Request a rental quote from Anaconda Pipe and Hose
Applications by Industry
Construction and Civil Works
Lay flat hoses are widely used in construction for site dewatering, foundation drainage, and temporary water bypass. Their ability to deploy quickly, handle varying flow rates, and collapse flat after use makes them ideal for short term and phased construction projects where space, time, and access are constrained.

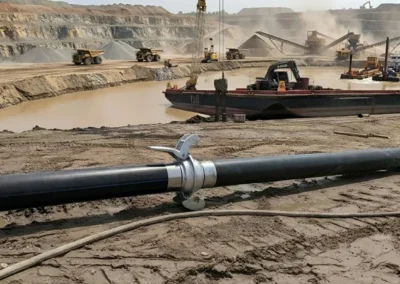

Mining and Aggregate Operations
In mining and quarry environments, lay flat hoses support pit dewatering, wash-plant supply, and process-water transfer. Reinforced constructions provide abrasion resistance and pressure stability when handling sediment-laden water across long discharge runs and uneven terrain.
Municipal Water and Utilities
Municipal agencies rely on lay flat hoses for temporary water transfer, line maintenance, and emergency response. Potable water-rated and NSF 61 certified options support drinking water distribution during repairs, planned outages, and infrastructure upgrades.
Environmental and Remediation Projects
Lay flat hoses are used in environmental remediation for controlled water conveyance, treatment system feed, and site drainage. Smooth-bore liners help maintain predictable flow, while reinforced jackets withstand repeated deployment in sensitive or regulated work zones.
Oil and Gas
In upstream and midstream operations, lay flat hoses support water transfer, drilling support, and temporary pipeline replacement. Static-resist models provide added safety for applications where static buildup control is required.
Agriculture and Irrigation
Agricultural operations use lay flat hoses for irrigation supply, water distribution, and seasonal water management. The lightweight construction and compact storage profile enable large-diameter water conveyance without permanent piping installation.
Industrial Manufacturing and Processing
Industrial facilities use lay flat hoses for process water transfer, cooling water circulation, and temporary system bypass. Multiple pressure classes and material options allow compatibility with a wide range of fluids and operating conditions.
Emergency Response and Disaster Relief
Lay flat hoses play a critical role in flood response, firefighting support, and disaster recovery. Rapid deployment, long continuous lengths, and high flow capacity enable fast water movement in time-sensitive situations where permanent infrastructure is unavailable.
Case study
Emergency Flood Bypass for Municipal Infrastructure Repair

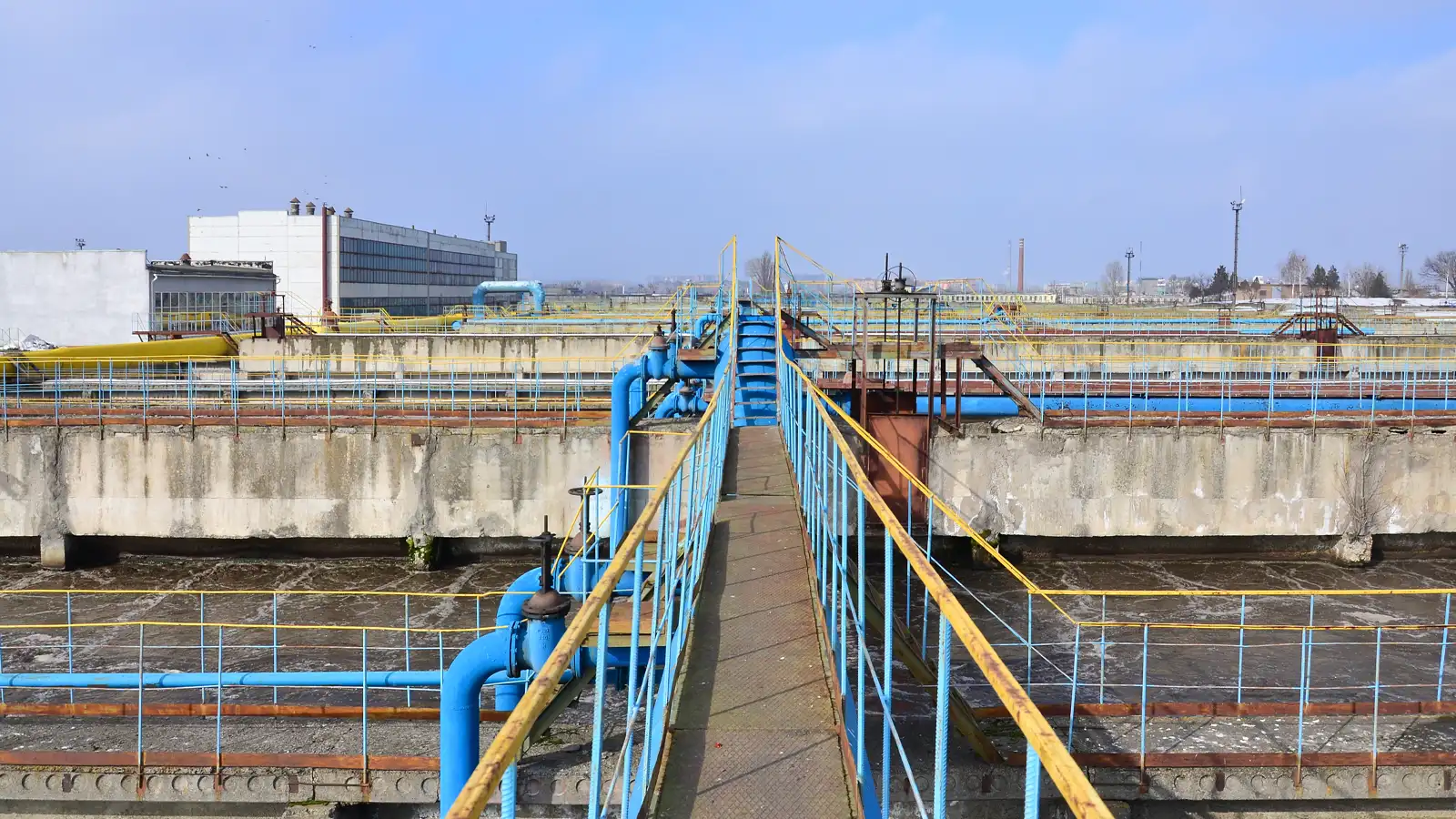

The Problem
A municipal water utility experienced an unexpected main failure that disrupted a critical section of the distribution network. Immediate isolation of the damaged line was required, but shutting down service would have impacted downstream users and essential facilities. The site offered limited access, tight installation timelines, and strict requirements for maintaining potable water quality during the repair window.
The Solution
Anaconda Pipe and Hose lay flat hose assemblies were deployed as a temporary bypass to reroute flow around the failed section. An NSF 61 certified potable water-rated hose was selected to meet drinking water compliance requirements. Large diameter sections provided the necessary flow capacity, while reinforced construction maintained pressure stability over the full bypass length. Compatible couplings allowed fast installation and secure integration with existing infrastructure.

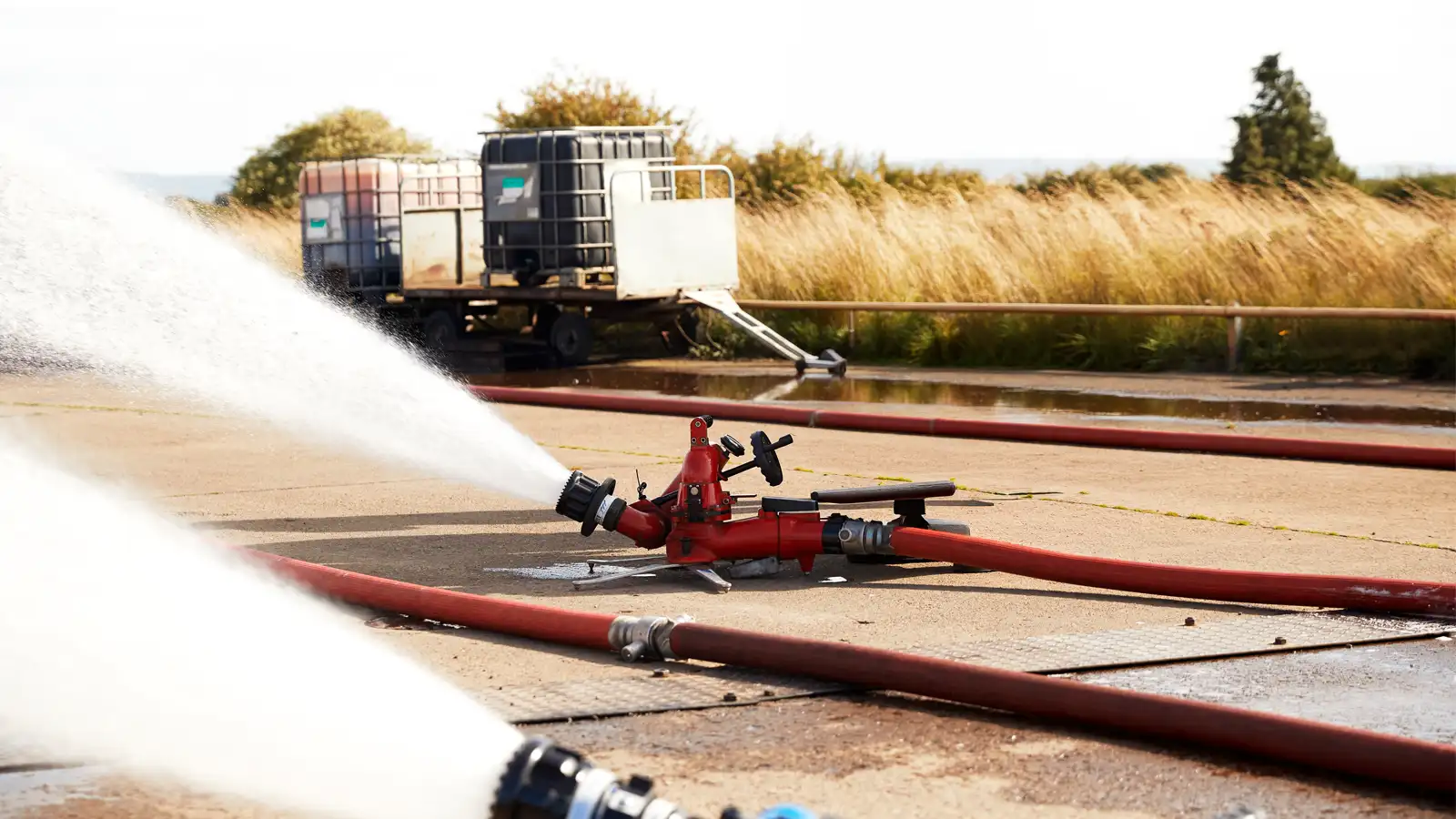

The Result
Water service was maintained throughout the repair period without compromising quality or pressure. The bypass system was installed and commissioned quickly, minimizing disruption to surrounding areas. Once permanent repairs were completed, the lay flat hoses were depressurized, removed, and recovered efficiently, reducing site restoration time and avoiding the need for permanent piping modifications.
Frequently Asked Questions
What is a lay flat hose, and how does it work?
A lay flat hose is a flexible discharge hose that remains flat when empty and expands to a round cross-section when pressurized. This design allows high-flow water or fluid transfer while minimizing storage space, transport volume, and handling effort when the hose is not in use.
What applications are lay flat hoses best suited for?
Lay flat hoses are commonly used for dewatering, water transfer, bypass pumping, irrigation, mining operations, emergency response, and temporary pipeline replacement. They are especially effective where rapid deployment, long discharge runs, or temporary installations are required.
What diameter and pressure ranges are available?
Lay flat hoses are available in a wide range of diameters, typically from about 1 inch to 12 inches or more, depending on the model. Working pressure ranges vary by construction and size, from lower-pressure transfer hoses to high-pressure options exceeding 700 PSI for specialized water transfer applications.
Are lay flat hoses suitable for potable water use?
Yes, select models are designed specifically for potable water transfer. These hoses use drinking water-approved liners and include options that meet NSF 61 certification requirements for municipal, emergency response, and regulated potable water applications.
How does hose construction affect performance?
Construction determines pressure capacity, abrasion resistance, chemical compatibility, and service life. PVC and nitrile blends are commonly used for general and heavy-duty applications, while TPU liners and circular woven reinforcements offer improved flexibility, abrasion resistance, and potable water compatibility.
Can lay flat hoses handle abrasive or sediment-laden water?
Heavy-duty and super-duty lay flat hoses are designed to handle abrasive conditions, such as sediment-laden water, mining discharge, and construction dewatering. Reinforced jackets and durable liners help resist external wear and internal erosion during repeated deployment cycles.
How do lay flat hoses compare to rigid pipe systems?
Lay flat hoses offer faster installation, easier transport, and lower storage requirements than rigid pipe. While rigid pipe may be preferred for permanent infrastructure, lay flat hoses provide a highly efficient solution for temporary, mobile, or emergency systems.
Are there options for static control or sensitive fluid transfer?
Yes, static-resistant lay flat hose models incorporate bonded conductive elements to help dissipate static buildup. These hoses are used in applications where static control is important, such as fuel transfer or environments with sensitive operating conditions.

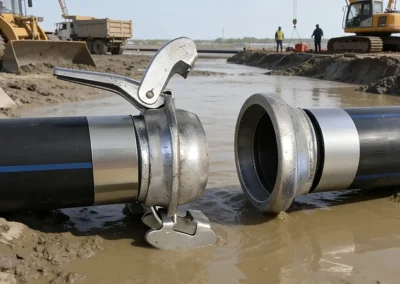

What coupling and connection options are available?
Lay flat hoses are compatible with a wide range of standard couplings, including quick-disconnect and flanged configurations. Hoses can be supplied with pre-installed couplings to reduce field assembly time and ensure reliable system integration.
Can lay flat hoses be reused across multiple projects?
Yes, quality lay flat hoses are designed for repeated deployment and recovery cycles. When properly handled and stored, they maintain pressure performance and structural integrity across multiple projects, making them a cost-effective solution for both owned and rental systems.
