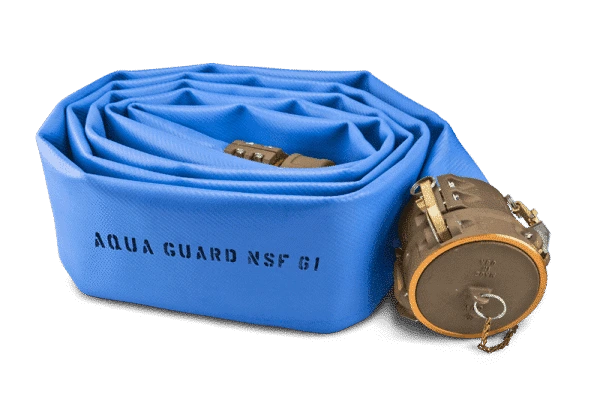

The Aqua Guard Lay Flat Hose is a high-performance, potable water hose designed for industrial and municipal applications. Constructed with through-the-weave TPU and high-tenacity polyester reinforcement, provides high flexibility, abrasion-resistant hose, and dimensional stability. Certified NSF61 for potable water, the hose handles working pressures up to 300 psi and burst pressures up to 600 psi. Available in 50 ft (15 m) and 100 ft (30 m) sections, it ensures reliable, rapid-deployment water transfer in demanding environments.
Home
Lay Flat Hose

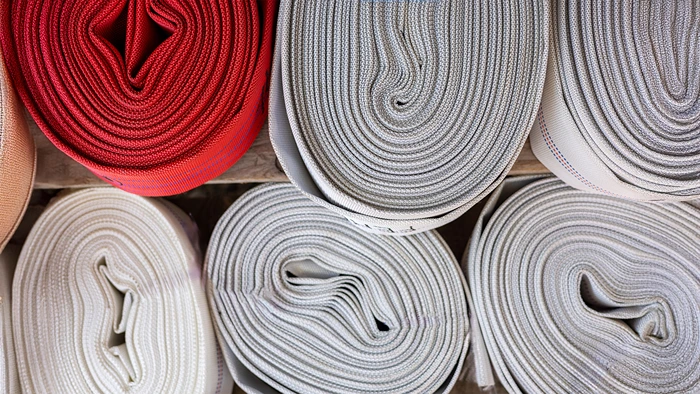

Aqua Guard Lay Flat HoseEngineering Highlights
- Through-the-Weave TPU Construction: The hose is extruded through high-tenacity polyester reinforcement, creating a seamless bond between the liner and cover for superior tensile strength and zero delamination under pressure.
- Premium Polyurethane (TPU) Material: Both the inner and outer layers are formulated for maximum abrasion resistance, flexibility, and longevity in dynamic fluid-transfer systems.
- Dimensional Stability: Circular woven reinforcement ensures minimal elongation (<2%) under load, maintaining consistent internal diameter and flow efficiency during operation.
- Enhanced Environmental Resistance: Engineered to withstand UV exposure, ozone degradation, and hydrolysis, extending service life in outdoor or humid environments.
- Potable Water Certified: NSF61 compliance guarantees safe use in drinking water systems and municipal water supply operations.
- Temperature Tolerance: Performs reliably across a broad temperature range, maintaining flexibility and pressure integrity in extreme conditions.
- Kink and Twist Resistance: Designed to resist mechanical deformation during deployment or retrieval, reducing maintenance downtime.
- Field-Ready Handling: Lay-flat profile enables compact storage, quick deployment, and compatibility with industry-standard couplings for fast system integration.

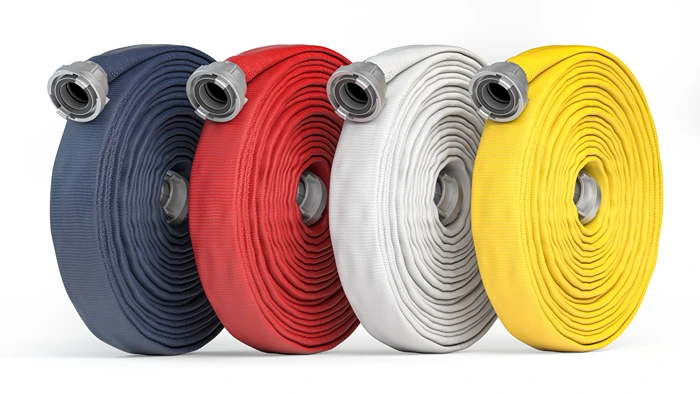

Technical Specifications – Aqua Guard Lay Flat Hose
Construction & Materials
- Through-the-weave extruded Thermoplastic Polyurethane (TPU) with integrated reinforcement.
- High-tenacity circular woven polyester yarn for structural strength and dimensional stability.
- Polyurethane liner and cover provide abrasion, UV, and chemical resistance.
- NSF61 certified for potable water applications.
Technical Specifications by Size
Size (in.) | Size (mm) | Working Pressure | Burst Pressure | Wall Thickness | Weight (lbs/ft) | Weight (kg/ft) |
|---|---|---|---|---|---|---|
2 | 51 | 300 psi (2,068 kPa) | 600 psi (4,137 kPa) | 0.08 in (2.03 mm) | 0.21 | 0.095 |
2½ | 64 | 300 psi (2,068 kPa) | 600 psi (4,137 kPa) | 0.08 in (2.03 mm) | 0.30 | 0.136 |
3 | 76 | 300 psi (2,068 kPa) | 600 psi (4,137 kPa) | 0.09 in (2.28 mm) | 0.37 | 0.168 |
4 | 102 | 300 psi (2,068 kPa) | 600 psi (4,137 kPa) | 0.09 in (2.28 mm) | 0.56 | 0.254 |
6 | 152 | 300 psi (2,068 kPa) | 600 psi (4,137 kPa) | 0.10 in (2.54 mm) | 1.22 | 0.553 |
7¼ | 184 | 250 psi (1,800 kPa) | 500 psi (3,500 kPa) | 0.16 in (4.06 mm) | 1.89 | 0.859 |
8 | 200 | 250 psi (1,800 kPa) | 500 psi (3,500 kPa) | 0.18 in (4.57 mm) | 2.10 | 0.950 |
10 | 250 | 250 psi (1,800 kPa) | 500 psi (3,500 kPa) | 0.20 in (5.08 mm) | 2.85 | 1.290 |
Each size of the Aqua Guard Lay Flat Hose maintains uniform material integrity and construction quality while scaling in wall thickness and reinforcement density to sustain optimal pressure performance. The hose’s polyurethane through-the-weave design ensures consistent flexibility and strength across all diameters, supporting reliable operation in both fixed and mobile potable water transfer systems.
Related Products
Armour Guard
Industrial lay-flat hose with a double-jacket construction, engineered for high abrasion, impact resistance, and heavy-duty slurry or fluid transfer applications.
Wat-Hog
Reinforced lay-flat hose designed for high-pressure water discharge, offering maximum durability and performance in demanding industrial, municipal, or firefighting operations.
Product Comparison: Aqua Guard vs Armour Guard vs Wat-Hog
Parameter | Aqua Guard™ | Armour Guard® | WAT-Hog™ |
|---|---|---|---|
Primary Use | Potable water transfer | Heavy-duty industrial water discharge | Fuel, wastewater, sewer, and treated water transfer |
Construction Type | Through-the-weave, one-piece polyurethane extrusion | Heavy-duty nitrile PVC blend, extruded-through-the-weave | Through-the-weave, one-piece polyurethane extrusion |
Reinforcement | Circular woven high-tenacity polyester | High-tensile synthetic yarn | Circular woven high-tenacity polyester |
Cover & Liner Material | Elastomeric polyurethane (TPU) | Nitrile PVC blend | Elastomeric polyurethane (TPU) |
Certification / Compliance | NSF61 Certified | __ | (bonding wires available per MIL-PRF-370 Type C) |
Working Pressure | 300 psi (2–6″) / 250 psi (7¼–10″) | 300 psi (1½–2½″) | 300 psi (2–6″) / 250 psi (7¼–10″) |
Burst Pressure | 600 psi (2–6″) / 500 psi (7¼–10″) | 900 psi | 600 psi (2–6″) / 500 psi (7¼–10″) |
Wall Thickness | 0.08″ – 0.20″ (2.03 – 5.08 mm) | Not specified | 0.08″ – 0.20″ (2.03 – 5.08 mm) |
Weight (per ft) | 0.21 – 2.85 lb (0.095 – 1.29 kg) | 6.4 – 11.8 kg per 50 ft (derived from PDF) | 0.21 – 2.85 lb (0.095 – 1.29 kg) |
Color | Blue / Tan | Black | Blue/Tan/Orange |
Resistance Properties | Abrasion, fuels, chemicals, UV, ozone, weathering, hydrolysis, microbiological attack | Ozone, abrasion, heat, fuels, oil, chemicals | Abrasion, fuels, chemicals, UV, ozone, weathering, hydrolysis, microbiological attack |
Additional Features | Long service life; fast deployment and retrieval | Anti-burst design; easy storage | Optional static discharge wires; fast deployment and retrieval |
Typical Applications | Municipal & military potable water systems | Industrial discharge and dewatering | Municipal, industrial, marine, and military fuel/water transfer |
Pipe and Hose Rentals: Aqua Guard Lay Flat Hose
Deploy Aqua Guard Lay Flat Hoses for safe, high-volume potable water transfer. NSF61 certified and built with through-the-weave TPU and high-tenacity polyester reinforcement, these hoses deliver flexible, kink-resistant, and abrasion-proof performance. Rated for working pressures up to 300 psi and burst pressures up to 600 psi, they are available in 50 ft and 100 ft sections for temporary pipelines, emergency water distribution, and industrial or municipal projects. Renting ensures quick deployment, maintenance-free operation, and expandable water conveyance without long-term storage or capital investment.

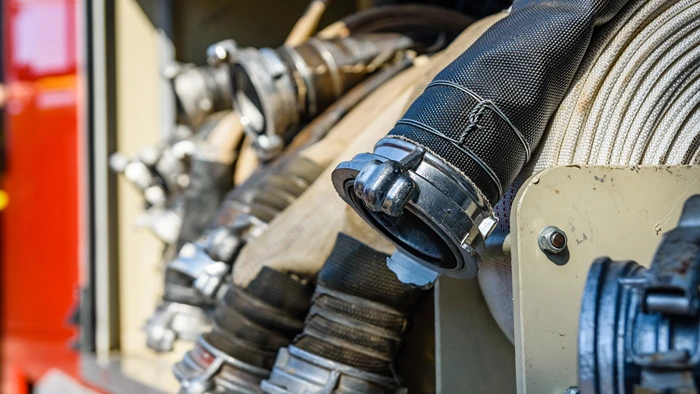

Industrial Applications and Deployment Areas
The Aqua Guard is a flexible Lay Flat Hose designed for industries requiring reliable, high-pressure potable water transfer:
Municipal & Water Utilities: Ideal for emergency water supply, temporary pipelines, and water main bypasses. Aqua Guard provides a dependable solution for critical municipal operations, ensuring uninterrupted water delivery during maintenance or emergency scenarios.
Construction & Infrastructure: Handles site dewatering, temporary water distribution, and pipeline deployment with ease. Its design supports continuous operation on construction sites, reducing delays and keeping projects on schedule.
Mining & Heavy Industry: Delivers high-volume water transfer for processing, dust control, and operational support in remote locations. Built to withstand abrasive, high-demand industrial conditions, Aqua Guard ensures reliability in harsh environments.
Emergency Response & Disaster Relief: Rapid-deployment potable water systems for floods, droughts, or disaster scenarios. Aqua Guard industrial lay flat hose enables immediate water distribution where speed and reliability are critical.
Oil & Gas: Suitable for temporary water conveyance for drilling, cooling, and field operations. Its rugged construction ensures continuous flow in demanding oilfield environments.
Industrial Facilities: Supports plant water transfer, bypass lines, and maintenance operations. Aqua Guard provides a solid solution for temporary water systems, minimizing operational disruptions.
Military: Designed for potable water transfer in field operations, Aqua Guard delivers reliable, high-pressure performance in remote and challenging military environments, ensuring mission-critical water supply is maintained.
Material & Build: Constructed from NSF61-certified TPU and high-tenacity polyester reinforcement, Aqua Guard is engineered for long-term durability and operational efficiency, making it a reliable choice for all high-demand industrial applications.
Case study
Temporary Bypass for Potable Water Pipeline Maintenance

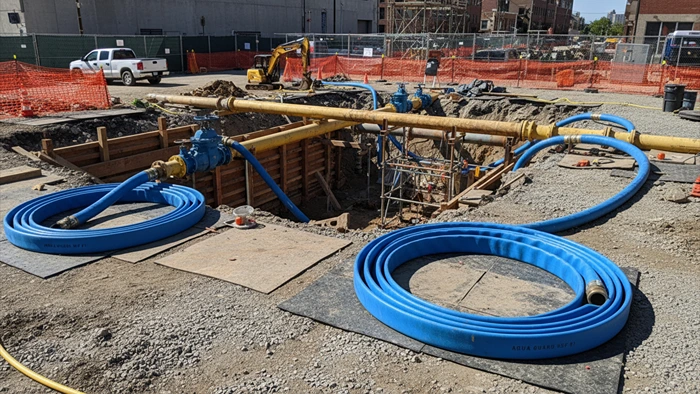

Challenge:
A municipal utility faced an urgent need to repair a deteriorating 36-inch water main that supplied potable water to a densely populated residential area of over 40,000 residents. A complete shutdown would have caused widespread service disruptions and public inconvenience. To maintain a continuous water supply during the repair, the utility required a temporary high-pressure bypass system that met potable water safety standards, was quick to deploy, and could operate reliably under demanding conditions.

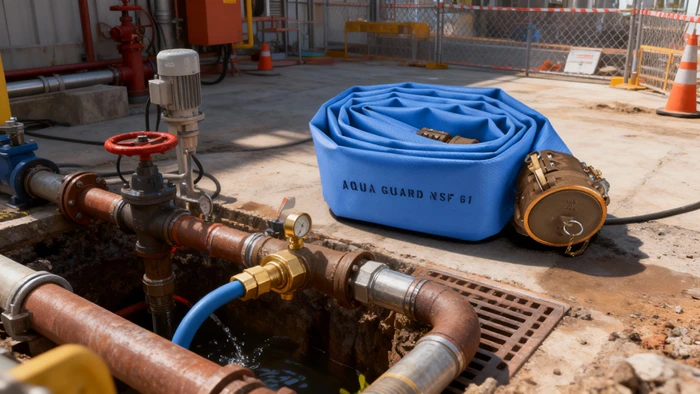

Solution:
The project team implemented Anaconda Aqua Guard potable water lay flat hose in 4-inch and 6-inch diameters to establish a parallel bypass line spanning approximately 1.5 miles. The potable water hose is lightweight, flexible, and lay-flat construction, allowing quick deployment across roads and congested urban areas without the need for heavy equipment or extensive excavation. Their NSF61 certification ensured full compliance with potable water quality standards, making them suitable for direct use in municipal water distribution systems. The hoses also provided excellent pressure resistance and durability, accommodating fluctuations during peak demand while maintaining structural integrity.

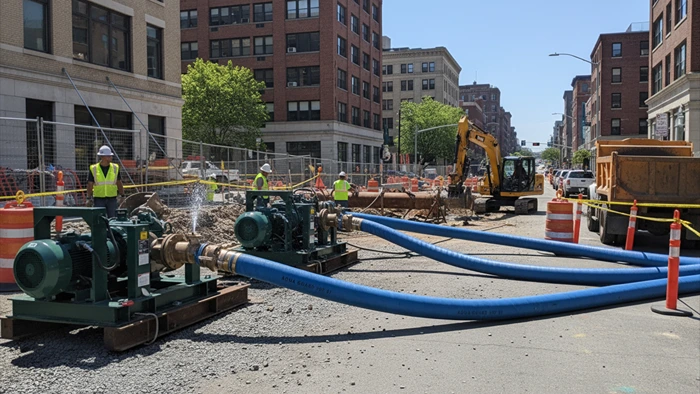

Result:
Throughout the 5-day maintenance period, water service remained fully operational with no reported drop in pressure or compromise in water quality. The city documented a 30% reduction in setup and dismantling time compared to traditional rigid pipe systems, resulting in significant labor and logistical savings. Additionally, the compact footprint of the Aqua Guard system minimized public disruption, allowing maintenance teams to execute repairs efficiently while preserving service continuity for residents. The successful implementation demonstrated the reliability and cost-effectiveness of flexible lay-flat hose solutions for large-scale potable water bypass operations.
Frequently Asked Questions
What is the Aqua Guard Lay Flat Hose, and which industries use it?
The Aqua Guard Lay Flat Hose is a high-performance hose designed for reliable potable water transfer. Its construction uses through-the-weave TPU with high-tenacity polyester reinforcement, providing excellent flexibility, abrasion resistance, and dimensional stability. Industries that commonly use it include municipal and water utilities, construction and infrastructure, mining and heavy industry, oil and gas, emergency response and disaster relief, industrial facilities, and military field operations.
What makes Aqua Guard hoses durable and reliable?
Aqua Guard hoses feature a seamless through-the-weave TPU design where the liner and cover are extruded directly through circular woven polyester reinforcement. This construction ensures high tensile strength, prevents delamination under pressure, and provides excellent resistance to abrasion, UV exposure, chemicals, and hydrolysis. The hoses maintain consistent internal diameter and flow, even under heavy loads, with minimal elongation.
How does Aqua Guard compare to other lay-flat hoses?
Unlike some industrial hoses designed for slurry, fuel, or wastewater transfer, Aqua Guard is specifically NSF61-certified for potable water. Its TPU construction and circular polyester reinforcement make it flexible, abrasion-proof, and kink-resistant, with fast deployment and retrieval capabilities. Other hoses may offer higher burst pressures or fuel resistance, but are not certified for safe drinking water transfer.
Can Aqua Guard hoses handle harsh environments and extreme temperatures?
Yes. These hoses are engineered for durability in outdoor, humid, or industrial environments. The TPU construction resists UV degradation, ozone, hydrolysis, and chemical exposure, while maintaining flexibility and pressure integrity in extreme conditions. Kink-and-twist resistance ensures smooth deployment even in complex or rugged settings.
Are Aqua Guard hoses suitable for rental or temporary projects?
Absolutely. Aqua Guard hoses are widely used in temporary water transfer projects such as emergency water distribution, construction site dewatering, and municipal bypass lines. Renting allows quick deployment, modular expansion, and maintenance-free operation without long-term storage or capital investment.
Are Aqua Guard hoses compatible with standard couplings and fittings?
Yes. The lay-flat design allows seamless integration with industry-standard couplings. Multiple hose sections can be connected to form temporary pipelines, enabling quick, scalable deployment for dynamic project requirements.
Can Aqua Guard hoses be used in military or remote field operations?
Yes. Their high-pressure ratings, robust TPU construction, and kink-resistant design make Aqua Guard hoses ideal for field deployment in remote or challenging military environments. They ensure a reliable potable water supply even under mission-critical conditions.
How does Aqua Guard improve project efficiency?
Aqua Guard industrial lay flat hose supports rapid water deployment, reduces project delays, and minimizes maintenance. Their durability allows repeated handling without affecting performance, and modular configuration supports scalable pipeline solutions. This makes them a dependable choice for municipal, industrial, and construction projects requiring high-volume potable water transfer.
How can I get Aqua Guard hoses for my project?
You can purchase or rent Aqua Guard Lay Flat Hoses depending on your project needs. Renting is especially advantageous for temporary pipelines, emergency deployments, or short-term industrial applications. Contact our team to request a quote and determine the ideal hose size and configuration for your operation.
