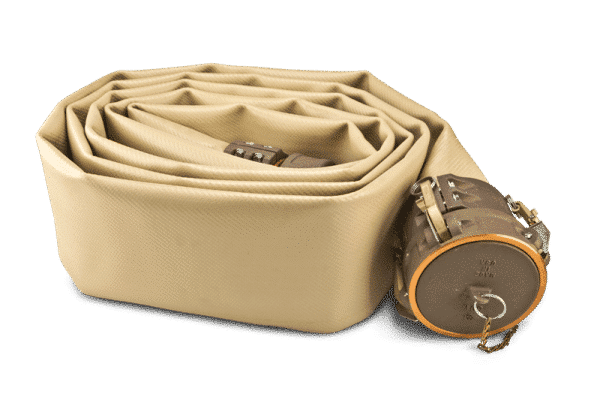

Lay Flat Military Fuel Hose for Safe, High-Volume Fuel Transfer
Anaconda Fuel Hose is a premium Lay Flat Hose engineered for reliable fuel and potable water transfer in demanding military operations. Trusted by all branches of the military, this hose features a through-the-weave, one-piece construction with high-tenacity polyester reinforcement fully encapsulated in a durable elastomeric polyurethane cover and lining. Designed for long service life and maintenance-free performance, it has proven reliability in some of the harshest operating environments for more than 25 years.
Home
Lay Flat Hose
Fuel HoseEngineering Features for Field Operations
Through-the-Weave One-Piece Construction
The hose is manufactured with a unique through-the-weave design, combining circular-woven high-tenacity polyester reinforcement with a fully encapsulated polyurethane cover and lining to ensure consistent structural integrity.
Bonding Wires for Fuel Transfer
Integrated bonding wires conforming to MIL-PRF-370 Type C enable electrically bonded couplings during fuel transfer operations, supporting safe handling of fuels.
High Flexibility & Kink Resistance
The hose follows natural ground contours without stressing the pipeline. Its flexibility minimizes the need for path cutting while reducing joint count and connection time.
Fast Deployment and Retrieval
Long continuous lengths can be rapidly deployed and retrieved using flaking boxes, light-duty trailers, or power-driven reels, supporting quick field setup and recovery.
Extreme Durability
High-quality materials provide superior abrasion resistance, and long-term coiled storage has minimal impact on hose life, making it suitable for extended military storage cycles.
Technical Specifications
Anaconda Fuel Hose is engineered for consistent performance across military fuel and water transfer operations. All sizes are designed to deliver reliable working pressures, high burst strength, and durability in demanding environments. Specifications below are taken directly from Anaconda’s product data.

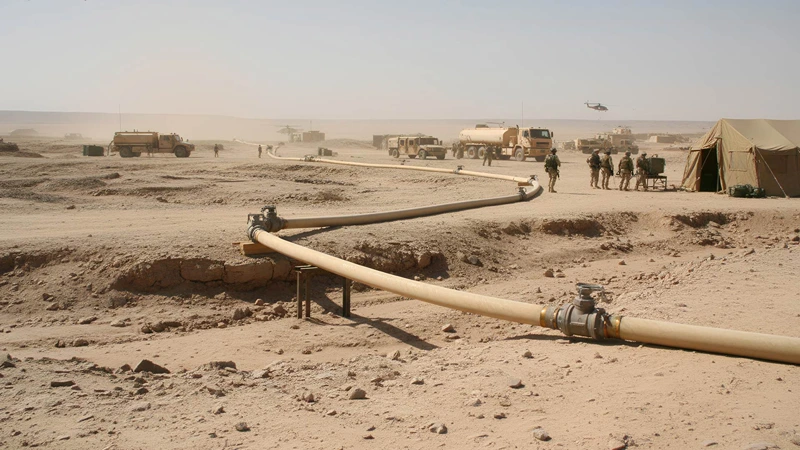

Operating Parameters
- Working Pressure: Up to 200 psi (size dependent)
- Burst Pressure: Up to 600 psi (size dependent)
- Temperature Range: -58°F to +158°F (-37°C to 70°C)
- Construction: Through-the-weave, one-piece circular woven high-tenacity polyester reinforcement with polyurethane cover and lining
- Fuel Transfer Safety: Bonding wires conforming to MIL-PRF-370 Type C Fuel-Hose
Size & Pressure Specifications
Nominal Size (in) | Nominal Size (mm) | Working Pressure (psi) | Working Pressure (kPa) | Burst Pressure (psi) | Burst Pressure (kPa) | Hose Thickness (lbs/kg) | Wall Weight (lbs/kg) |
|---|---|---|---|---|---|---|---|
2 | 51 | 200 | 1,379 | 600 | 4,137 | 0.085 / 2.16 | 0.25 / 0.113 |
2-1/2 | 64 | 200 | 1,379 | 600 | 4,137 | 0.095 / 2.41 | 0.37 / 0.168 |
3 | 76 | 200 | 1,379 | 600 | 4,137 | 0.102 / 2.59 | 0.56 / 0.254 |
4 | 102 | 200 | 1,379 | 600 | 4,137 | 0.125 / 3.18 | 0.80 / 0.363 |
6 | 152 | 200 | 1,379 | 600 | 4,137 | 0.140 / 3.56 | 1.25 / 0.567 |
8 | 203 | 200 | 1,379 | 600 | 4,137 | 0.180 / 4.57 | 2.15 / 0.975 |
10 | 254 | 150 | 1,034 | 500 | 3,447 | 0.185 / 4.70 | 2.80 / 1.27 |
Anaconda Pipe and Hose Company maintains ongoing product improvement programs and reserves the right to modify specifications without prior notice. Please contact customer service to confirm the current technical data.
Accessories & Related Products
Anaconda Fuel Hose can be integrated into complete fuel and water transfer systems with compatible accessories that ensure secure connections and efficient deployment. Availability and configuration depend on application requirements.

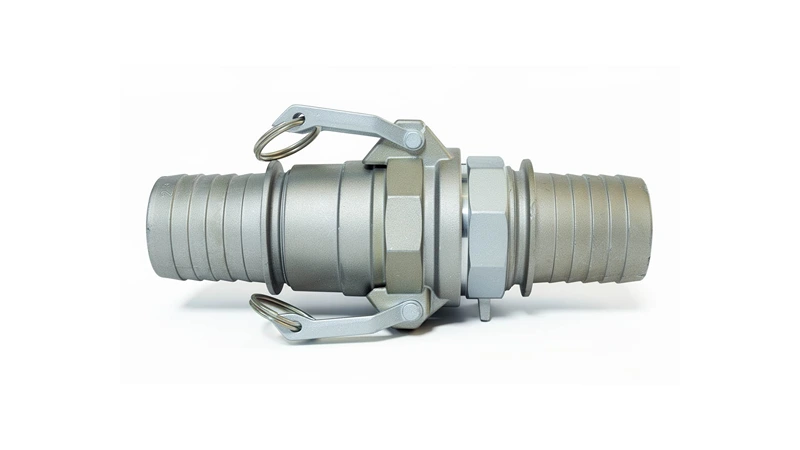

Couplings
A range of coupling options is available to connect hose lengths securely and support fuel transfer operations. Bonding wires fitted in the hose allow couplings to be electrically bonded in accordance with MIL-PRF-370 Type C requirements.

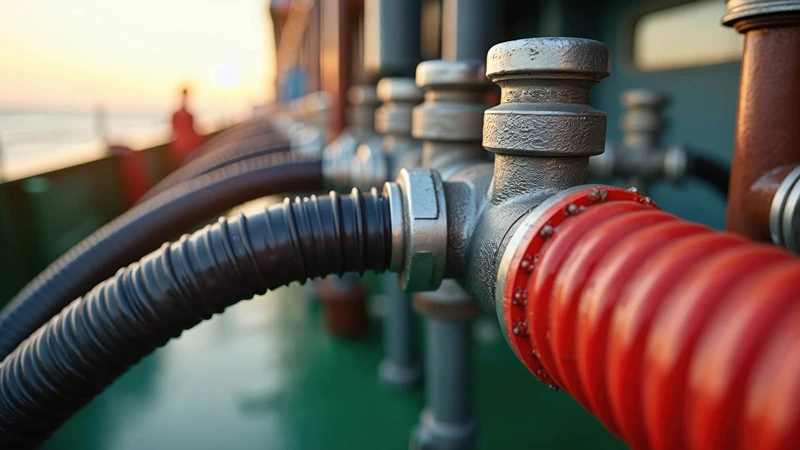

Manifolds
Manifolds can distribute flow across multiple hose lines or connect hoses to fuel sources, pumps, or auxiliary equipment as part of larger transfer systems.

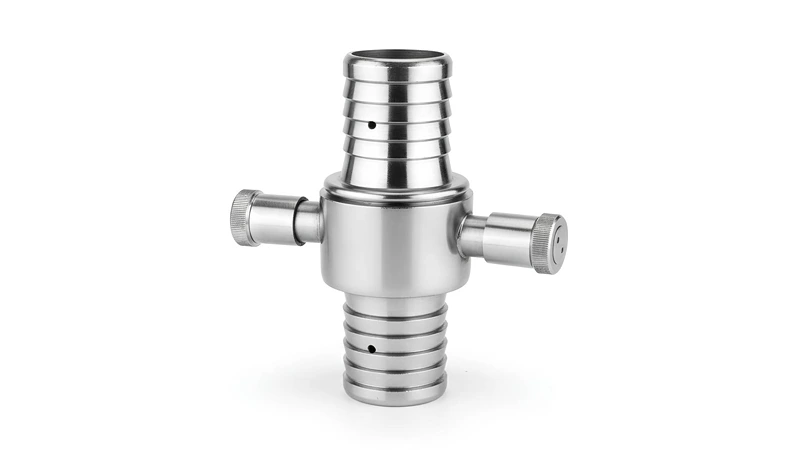

Connection & Support Hardware
Additional hardware is available for joining hose segments, interfacing with fluid supplies, or integrating auxiliary equipment. These components support modular system layouts and rapid field configuration.

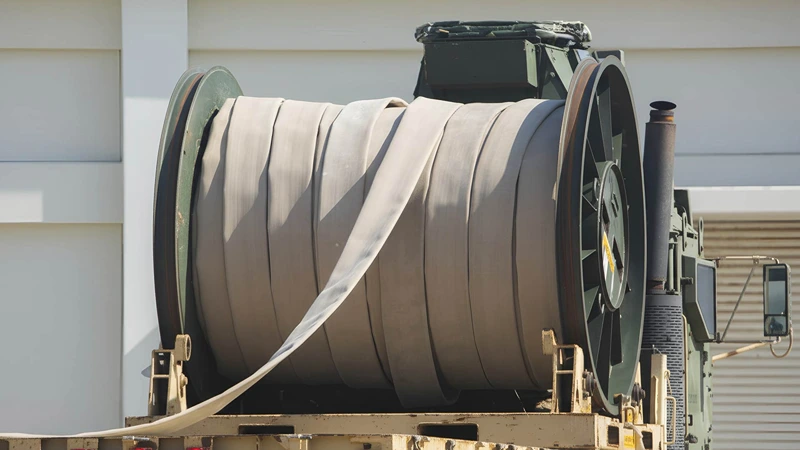

Deployment & Handling Systems
The hose is compatible with flaking boxes, light-duty trailers, and power-driven reels, supporting fast deployment, retrieval, and storage in military and industrial operations.
For confirmation on accessory compatibility, system configuration, or availability, contact Anaconda Pipe and Hose customer service.
Speak With Technical Team
Get in touch with Anaconda Pipe & Hose for industry-ready pipe and hose solutions.
Pipe and Hose Rentals
Anaconda Fuel Hose is available through pipe and hose rental solutions for temporary fuel and water transfer operations. The lay flat design supports fast deployment and retrieval using flaking boxes, trailers, or powered reels, making it suitable for short-term missions, testing, and pipeline bypass applications.
Rental systems can be configured with compatible couplings, manifolds, and hardware to meet specific operational requirements. Contact Anaconda Pipe and Hose to confirm availability and configuration options.
Deployment Across Multiple Sectors
Anaconda Fuel Hose is primarily used for fuel transfer operations in environments where safety, durability, and rapid deployment are critical. Its construction and bonding features are designed to support controlled fuel movement, with water transfer serving as a secondary capability in supporting operations.
Military & Defense Operations
The hose is widely used by all branches of the military for bulk fuel transfer in field deployments, base operations, and temporary pipeline systems. It also supports potable water supply and pipeline bypass, where required to maintain operational continuity.
Marine & Offshore Fuel Supply
Used for fuel transfer during cargo loading and unloading, including ship-to-shore and ship-to-offshore facility operations where flexible, lay flat fuel lines are required.
Industrial Fuel Handling
Applied in controlled industrial environments for temporary or mobile fuel transfer, including truck loading and unloading, and auxiliary fuel supply systems.
Municipal & Industrial Fire Services
Supports fuel-related fire response operations and high-flow water delivery for industrial and municipal fire services when flexible, rapidly deployable hose systems are needed.
Water & Wastewater Support Applications
Used for water transfer, flushing, and treatment support in situations where the same hose system is required to handle both fuel and water in separate operations.
Infrastructure & Temporary Pipeline Operations
Supports fuel movement and associated water handling in temporary pipeline bypass, dewatering, slurry pumping, and maintenance activities where durable, reusable hose systems are required.
Case study
Military Fuel Transfer in Harsh Field Conditions

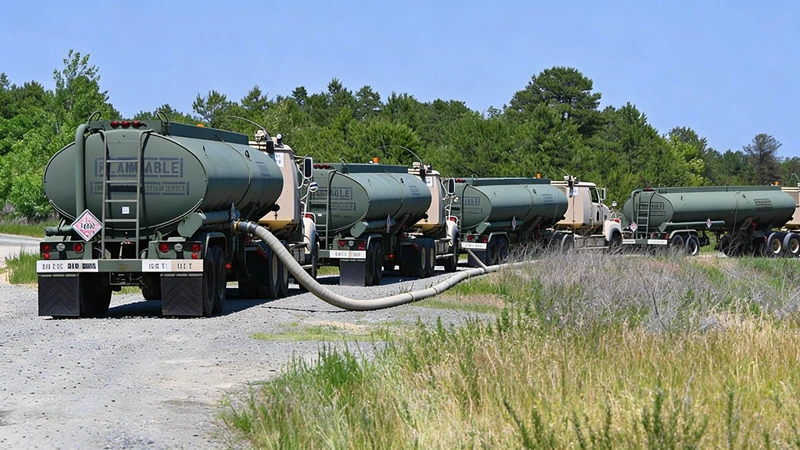

Application
Temporary fuel transfer pipeline supporting military field operations where continuous, reliable fuel delivery was required.

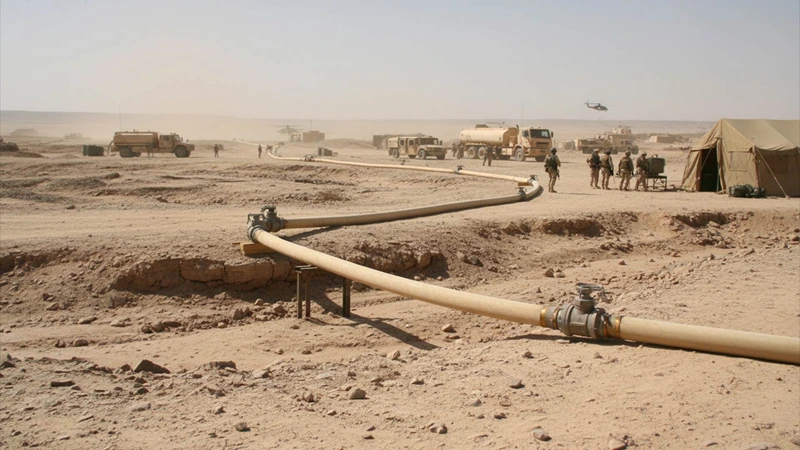

Operational Requirements
- Safe fuel transfer with electrical bonding
- Long continuous hose lengths with minimal joints
- Fast deployment and retrieval in challenging terrain
- Low maintenance and long service life

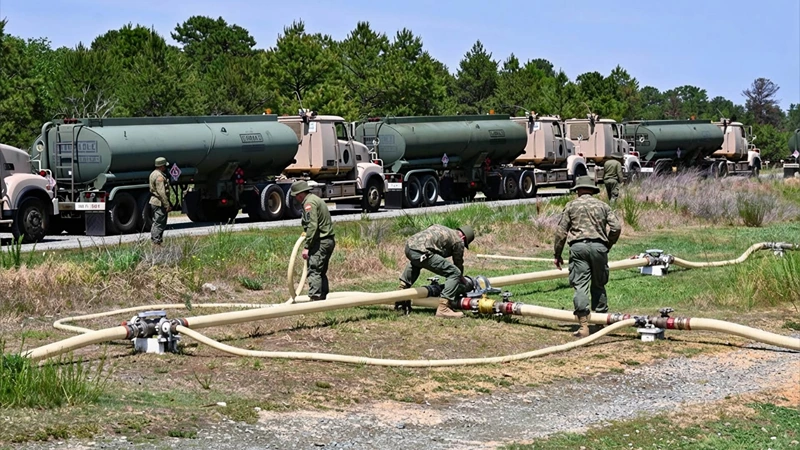

Solution
Anaconda Fuel Hose was deployed as part of a lay flat pipeline system. The hose’s through-the-weave, one-piece construction and polyurethane cover and lining provided durability and abrasion resistance. Integrated bonding wires conforming to MIL-PRF-370 Type C enabled electrically bonded couplings for fuel transfer safety.

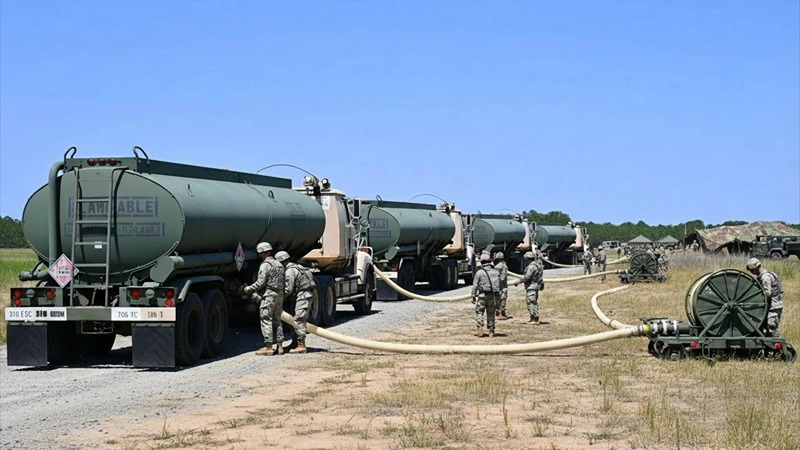

Execution
The hose was deployed using reels, allowing rapid setup and routing along natural ground contours without extensive site preparation. Fewer joints reduced connection time and labor requirements.

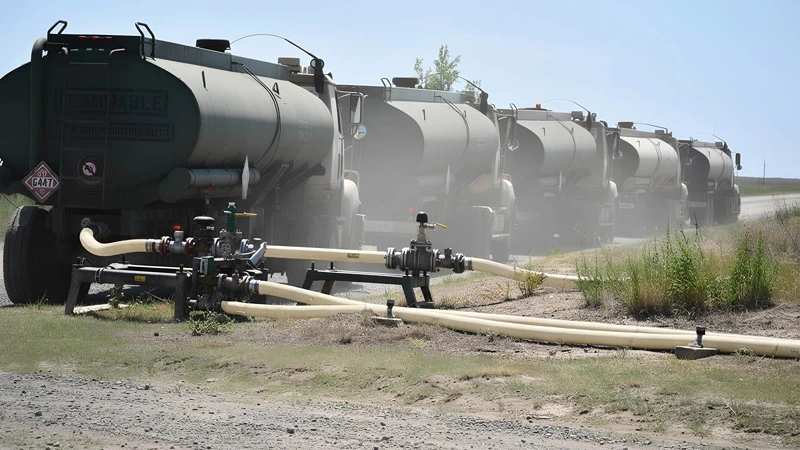

Results
- Consistent fuel transfer with low pressure loss
- No routine maintenance required during operation
- Reliable performance in harsh environments
- Proven long-term durability, with similar installations remaining in service for over 25 years
Frequently Asked Questions
What is Anaconda Fuel Hose designed for?
Anaconda Fuel Hose is designed for the transfer of fuel and potable water in military and industrial operations, where durability, safety, and rapid deployment are required.
Is this hose approved for military fuel transfer applications?
Yes. The hose is a trusted fuel delivery solution used by all branches of the military and includes bonding wires conforming to MIL-PRF-370 Type C for fuel transfer operations.
What construction method is used in this hose?
It features a through-the-weave, one-piece construction with circular-woven high-tenacity polyester reinforcement fully encapsulated in a polyurethane cover and lining.
What sizes are available for Anaconda Fuel Hose?
The hose is available in sizes ranging from 2 inches to 10 inches, depending on application and flow requirements.
What are the working and burst pressure ratings?
Working pressure is up to 200 psi for most sizes and 150 psi for the 10-inch hose. Burst pressure is up to 600 psi, depending on size.
What temperature range can the hose operate in?
The operating temperature range is -58°F to +158°F (-37°C to 70°C), making it suitable for extreme environments.
Can the hose be stored for long periods?
Yes. The hose is designed for long-term storage in coiled configurations with minimal impact on service life.
How does the hose support fast deployment in the field?
Its lay flat design allows long, continuous lengths to be deployed and retrieved quickly using flaking boxes, light-duty trailers, or power-driven reels.
Does the hose offer resistance to abrasion and handling damage?
Yes. The polyurethane cover and lining provide superior abrasion resistance, supporting long service life in harsh operating conditions.
Can this hose be used for applications other than fuel transfer?
In addition to fuel transfer, it is used for water transfer, pipeline bypass, dewatering, waste transfer, slurry pumping, and industrial fire services.
Are compatible accessories available?
Yes. A range of couplings, manifolds, and auxiliary hardware is available to integrate the hose into complete transfer systems.
