Bauer Fittings Explained: Quick-Connect Systems for Rental Pipe and Hose

Bauer fittings are lever-lock couplings used to assemble compatible pipe and hose sections quickly. They are not camlocks. Anaconda supplies Bauer-equipped HDPE and related transition components for temporary and reconfigurable systems, while industrial slurry hose commonly uses ANSI flanges and lay-flat products may use Bauer, camlock, Storz, or other approved ends.

Quick Answer

A Bauer joint uses compatible male and female components, a sealing gasket, alignment, and a locking lever. Before closing it, verify size, series/profile, orientation, gasket material and condition, cleanliness, insertion, alignment, pressure/vacuum rating, support, and the approved assembly procedure. The lowest-rated part controls the system.

Anaconda Pipe and Hose manufactures, distributes, sells, and rents industrial conveyance equipment. Product selection must be based on the complete system, current datasheets, actual inventory, and the responsible project engineering—not on nominal diameter or a product label alone.

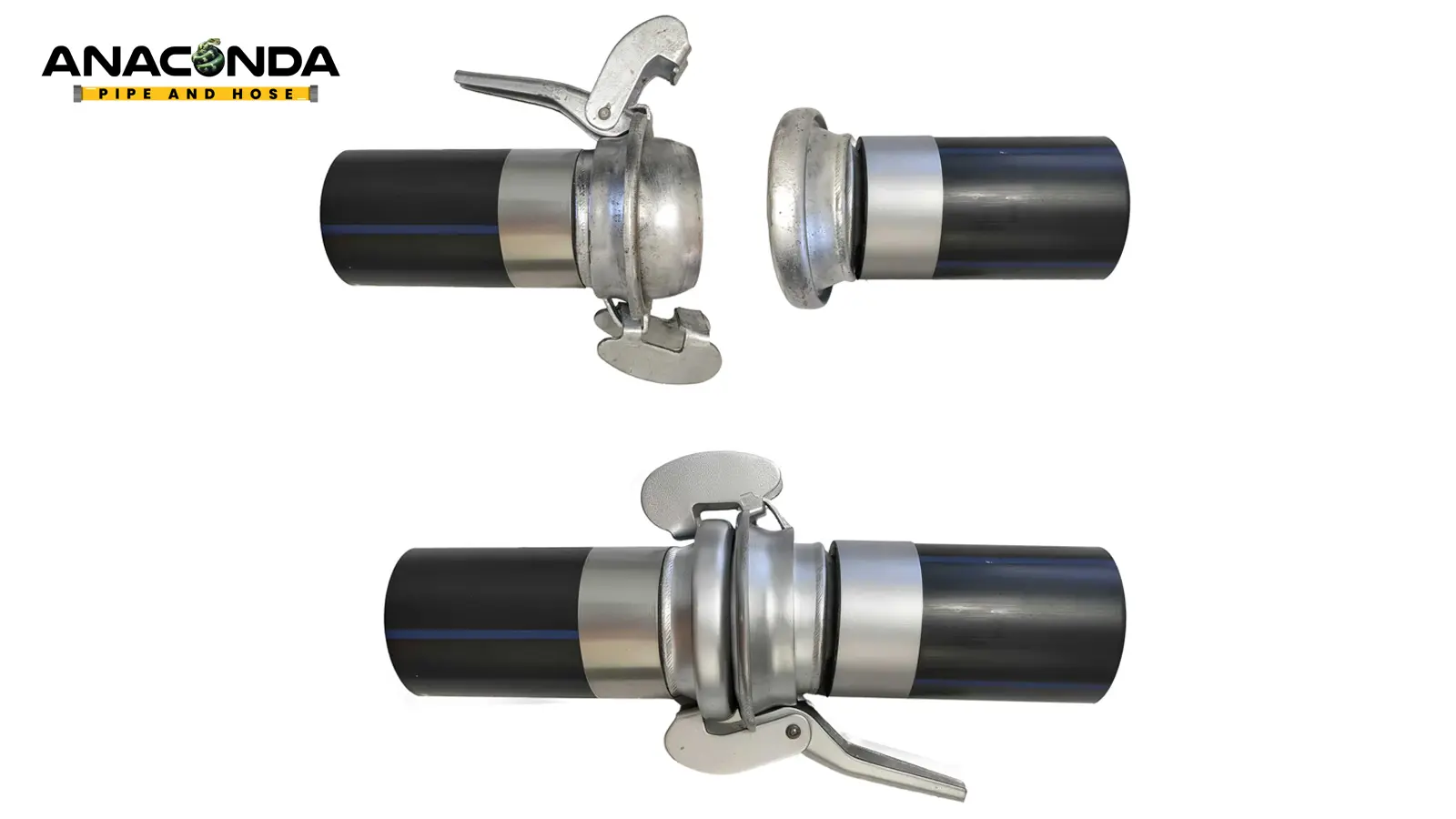

How Bauer Fittings Work

A typical Bauer lever-lock connection brings a compatible male ball or spigot into the matching female socket, compresses the specified gasket, and closes a lever to retain the joint. Exact geometry and assembly vary by size and manufacturer. The joint must be clean, aligned, fully seated, supported, and locked under the approved procedure before filling or pressurizing.

Why This Matters for Rental Economics Specifically

Bauer-equipped modular pipe can reduce field fusion, specialized equipment, and disassembly time on temporary routes. Savings depend on delivered section length, access, alignment, crew capability, adapters, support, testing, and the actual rental terms. Quick connection does not mean zero labor, zero tools, or zero inspection.

Gasket Condition and Seal Integrity

Confirm the specified gasket profile and elastomer for the media, temperature, pressure/vacuum, and fitting. Inspect for cuts, flattening, swelling, hardening, chemical attack, dirt, grit, incorrect seating, and missing lubrication where the approved procedure requires it. Never substitute an unknown gasket because it fits physically.

Matching Fitting Sizes Across Product Types

Nominal size does not prove connection compatibility. Bauer profiles, ANSI flange classes and bolt patterns, camlocks, Storz, hose tails, pipe IDs, and reducer bores differ. Use an approved connection schedule for every transition. Bauer and camlock are distinct systems even though both are quick-disconnect categories.

Pressure Rating of the Fitting vs. the Pipe or Hose Itself

The assembled system is limited by the lowest-rated pipe, hose, Bauer end, flange, gasket, valve, adapter, reducer, or other component after temperature and service adjustments. Check normal pressure, pump shutoff head, surge, vacuum, cyclic duty, restraint, and external loads. Do not assume the pipe DR rating applies to the connection.

Field Inspection Before and During Service

Before pressurizing a newly assembled line, a walk-through visual check of every connection point—cam levers fully engaged, gaskets properly seated, no visible damage to fitting components—catches assembly errors before they become in-service failures. During ongoing service, periodic connection checks (particularly after any repositioning or reconfiguration of the line) verify that connections that may have been disturbed remain properly engaged.

Common Field Errors With Bauer Connections

• Calling a Bauer fitting a camlock and arriving with incompatible adapters
• Mixing profiles, sizes, male/female orientations, gaskets, or pressure classes
• Closing the lever on a dirty, misaligned, partially seated, damaged, or unsupported joint
• Using an unapproved gasket, lubricant, hammering method, extension bar, or improvised locking device
• Loading the joint with pipe weight, hose bend, vibration, traffic, thermal movement, or inadequate restraint
• Pressurizing before the approved inspection and leak/pressure test
• Opening a connection before isolation, depressurization, drainage, and stored-energy control

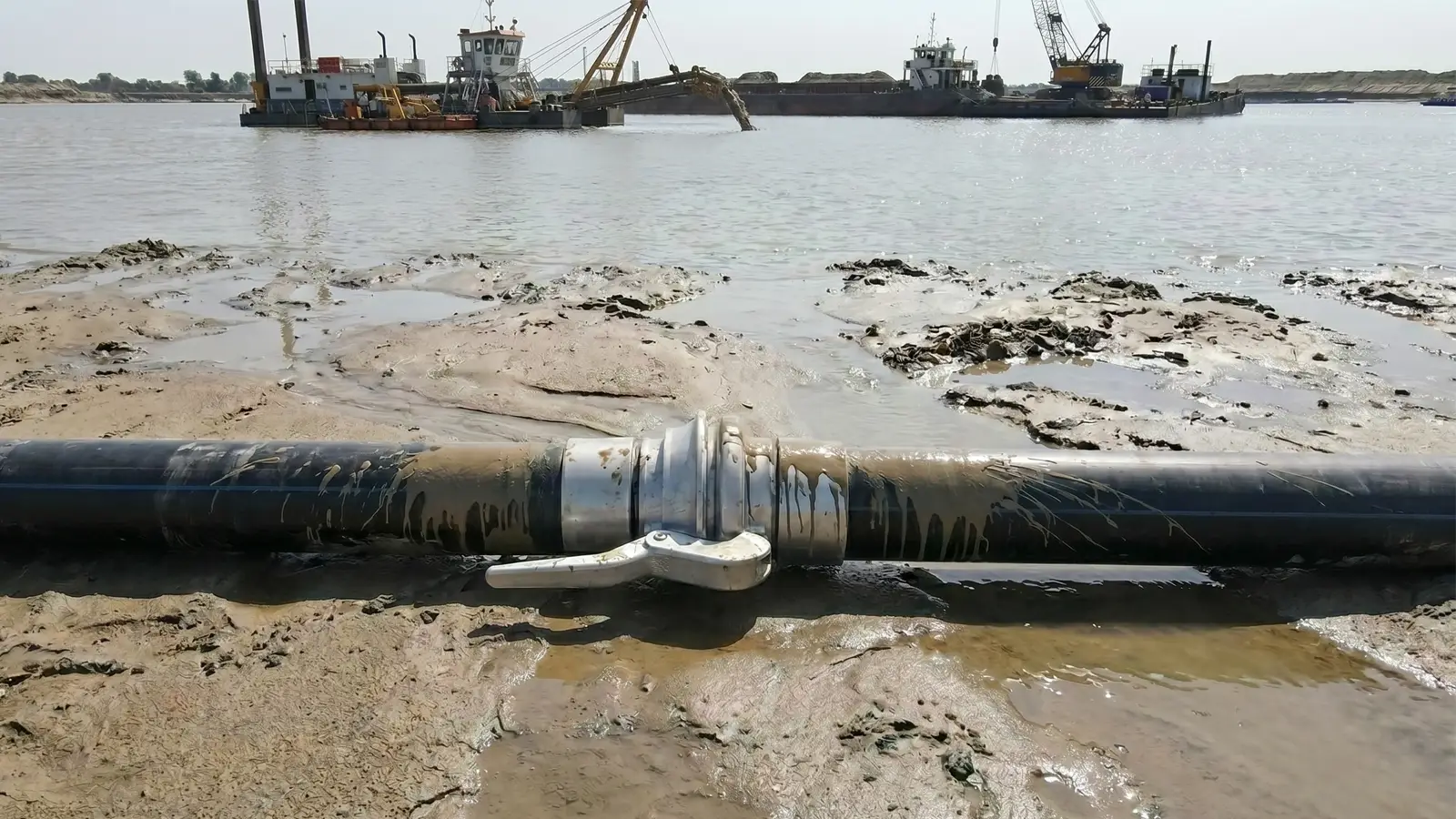

Fitting Maintenance Between Rental Deployments

Bauer fittings themselves, separate from the pipe or hose they’re attached to, benefit from basic maintenance between deployments—clearing accumulated debris from the cam mechanism, confirming gaskets haven’t degraded during storage, and checking for any physical damage to the cam levers or locking components. A rental fleet maintaining fittings to this standard between deployments delivers more reliable field connections than one that doesn’t, which is a reasonable question to ask a rental supplier about their maintenance practices if it isn’t already clear from experience with that supplier.

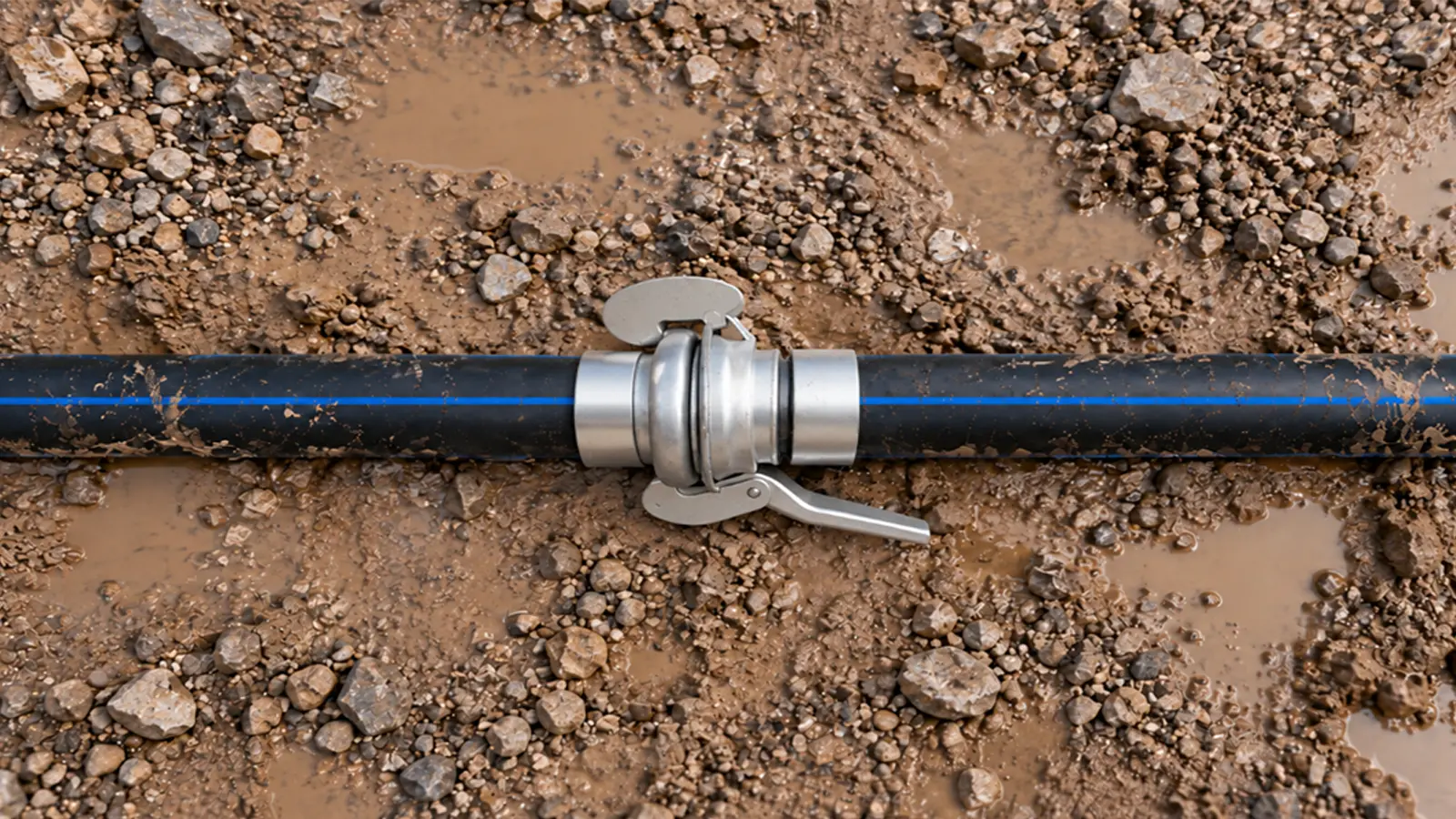

What to Send Anaconda for a Project Review

• Pipe/hose type, nominal size, outside/inside diameter, DR or hose construction, end manufacturer/profile/series, male/female orientation, and quantity
• Connection map showing Bauer joints, ANSI flanges, camlocks, Storz, valves, pumps, manifolds, reducers, adapters, branches, and discharge points
• Media, solids, chemistry, temperature, pressure, surge, vacuum, cyclic service, gasket/elastomer compatibility, and required codes/standards
• Support, restraint/anchoring, alignment, hose bend, pipe movement, traffic, vibration, external loads, installation tools, pressure/leak-test procedure, and inspection plan
• Rental/purchase, spare gaskets/levers/ends, cleaning/decontamination, delivery location, start date, service duration, return date, and responsible field contact

Frequently Asked Questions

Are Bauer fittings the same as camlocks?

No. Bauer uses a lever-lock ball/socket-style connection; camlock uses cam arms and a different mating geometry.

Are Bauer connections tool-free?

Do not promise that. Anaconda’s current page refers to basic hand tools, and installation may require alignment, lifting, support, inspection, and testing equipment.

Can a Bauer fitting connect directly to ANSI slurry-hose flanges?

Only through an approved adapter or end assembly with compatible size, bore, pressure/vacuum, gasket, flange class, and support.

Does DR11 use a different pipe outside diameter than DR17?

For the same nominal IPS size, they generally share the same OD; wall and ID change. Confirm the exact fused Bauer-end configuration and rating.

Can a joint be opened after the pump stops?

Not until the system is isolated, depressurized, drained or controlled, and verified safe under the project procedure.

Related Anaconda Resources

• Bauer pipe fittings
• quick-disconnect fittings
• HDPE pipe
• industrial slurry hose
• rental systems

Request the Right Pipe, Hose, and Fittings

Send Anaconda the media, required flow, pump and pressure data, route/elevation, product and fitting requirements, operating cases, rental or purchase preference, quantity, site access, delivery location, and schedule. The team can review current inventory and configure the pipe, hose, connections, adapters, spares, freight, and quote for the project.

Request a Quote or call (619) 201-8311.
